XAR-UCT UVC Light Meter

XAR-UCT is a precise meter that measures ultraviolet UVC radiation. It has a 9 inch bendable gooseneck that can locate and detect the UVC light even in hard-to-reach areas.

XAR-UCT UVC Light Meter


XAR-UCT is a UVC Light Meter with 9 inch bendable gooseneck. It is a precise meter that measures ultraviolet UVC radiation. It has a 9 inch bendable gooseneck that can locate and detect the UVC light even in hard-to-reach areas.

UVC wavelength is 200-275nm, also known as short wave sterilization ultraviolet. Peak wavelength of the curve between it and bactericidal efficiency (265nm) is very close, so when 253.7nm radiation reaches a certain value, it can be used to treat intestinal bacteria, Aspergillus flavus and HBsAg (hepatitis B surface antigen) and other pathogens were killed in a short time. Ultraviolet germicidal lamp emits UVC short wave ultraviolet.

UVC light applications are used for odor control, sterilization, and elimination of VOCs and industrial exhausts containing solvents.  Germicidal UV purifies the air from microorganisms that cause illness and contaminants. The use of UVC in odor control has many applications, including wastewater plants, farms, HVAC (Heating, Ventilation and Air Conditioning), and food processing plants.


Features

Gallium Nitride Based Material Photovoltaic Mode

High-precision detection, rapid response and operation

Good Visible Light Blindness

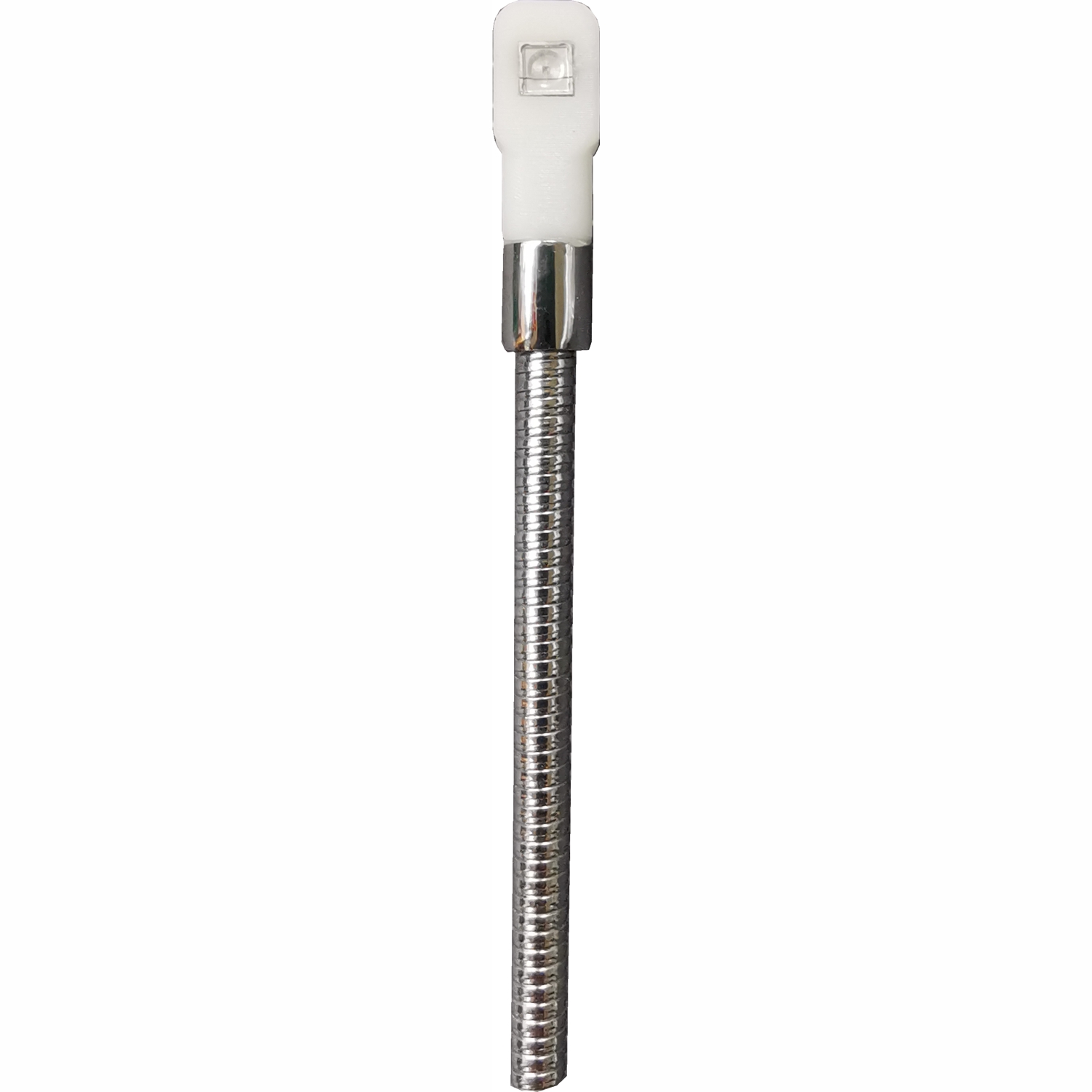

9 inch bendable gooseneck that can locate and detect the UVC light even in hard-to-reach areas

Display the maximum UVC radiation intensity for all-time

Trend chart display showing the past readings for UVC intensity

With temperature and humidity measurement

Only two buttons and easy to operate

Four AA Alkaline Batteries


Application

Monitoring UVC Germicidal Lamp Intensity & Aging

Monitoring Water Treatment Disinfection Lamp Intensity & Aging

Testing Eyewear UVC Blocking Capabilities

 Measuring Germicidal Lamp Fixture Leakage

Testing UVC Intensity in Semiconductor Fabrication, Offset Printing, Environmental Monitoring and Industrial Process Control.

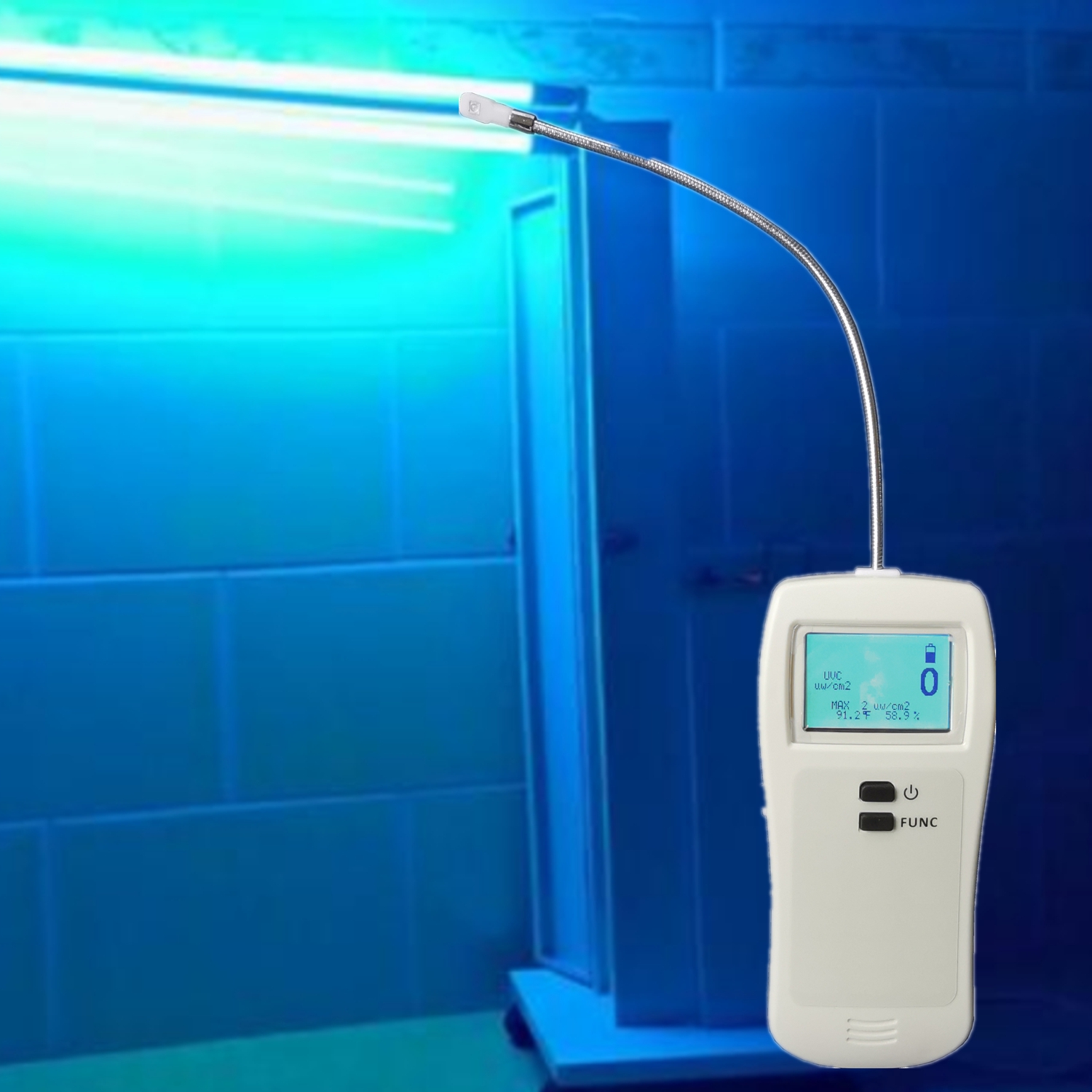

Detect the UVC light in hard-to-reach areas

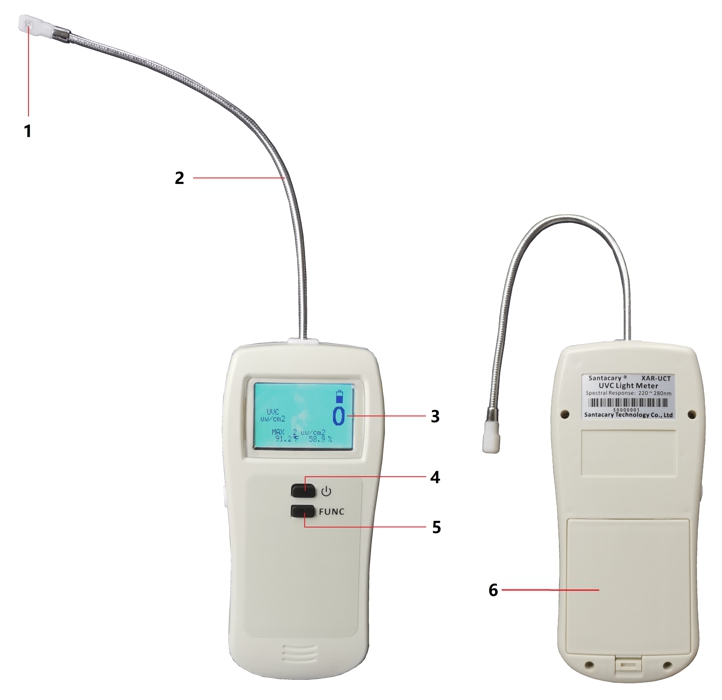

Device

1.        UVC sensor

2.        Bendable gooseneck

3.        LCD display

4.        Power button

5.        Function button

6.        Battery compartment cover



Normal Display

1.        Battery gauge

2.        Radiation intensity unit

3.        UVC radiation intensity

4.        Maximum UVC radiation intensity

5.        Temperature

6.        Relative humidity

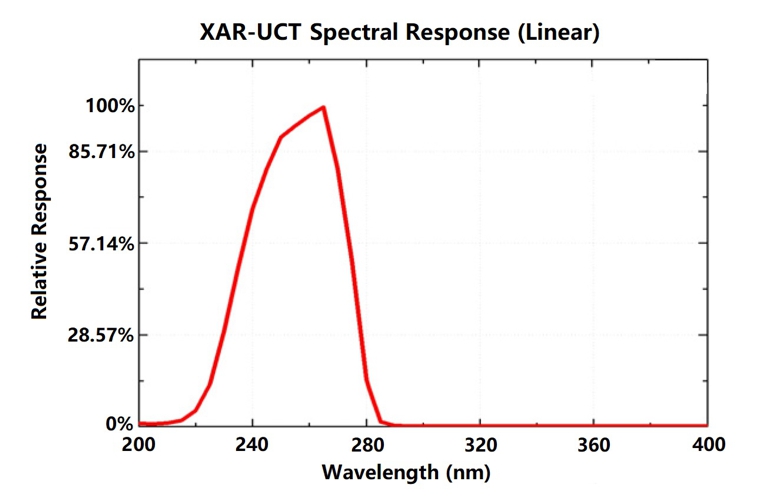

Spectral Response


The peak point (calibration point) of spectral response is at 265 nm.



Specifications

UVC Specification

UVC Measurement Range

0 to 3500 µW/cm2

Spectral Detection Range

220 to 280   nm

Peak point of Spectrum

265 nm

Measurement accuracy

±4% or ±1   digits

Resolution

1.0 µW/cm2

Temperature Range

-10 to 50°C (14 to 122°F)

Humidity Range

0 to 90%RH

Length of bendable gooseneck

9 inch



Temperature Specification

Temperature Range

-10.0~60.0°C (14~140°F) display

Display Resolution

0.1°C (0.1°F)

Display Options

°C/°F switchable

Accuracy

±0.5°C (±0.9°F)

Response Time

5~30 seconds (device must equilibrate with   environment)



RH Specification

Measurement   Range

0.0~99.9%RH

Display   Resolution

1%RH

Accuracy

±4.5%RH

Response Time

<8 seconds   for 63% of step change



General

Operating

-10°C to 50°C (14°F to 122°F), 0~90%   RH non-condensing

Storage

-10°C to 60°C (14°F to 140°F), <99%   RH non-condensing

Power Supply

Four AA Alkaline Batteries

Dimensions

75x165x25 mm (2.95x6.49x0.98”) without   gooseneck

Weight

139 grams (4.9 oz.) without   batteries



MATERIALS SUPPLIED

Santacary XAR-UCT UVC Light Meter

Protector Bag

English User Manual


Cleaning and Storage

The front panel and case can be cleaned carefully with a soft wet cloth. Allow drying completely before using. Do not use aromatic hydrocarbons or chlorinated solvents for cleaning.



Warranty

The XAR-UCT is warranted to be free from defects in material and workmanship for a period of two year from the date of purchase. This warranty covers normal operation and does not cover misuse, abuse, alteration, neglect, improper maintenance.
