XAR-UB UVB Light Meter

XAR-UB is a precise meter that measures ultraviolet UVB radiation.

XAR-UB UVB Light Meter


XAR-UB is a precise meter that measures ultraviolet UVB radiation.

UVB wavelength is 275-320nm, also known as medium wave erythema effect ultraviolet, which is mainly used in medical treatment, aging test, spectral analysis, etc.. UVB light has erythema effect on human body, can promote mineral metabolism in vivo and the formation of vitamin D. Reptile pets, such as tortoises, green iguanas, chameleons also need to take UVB.

Natural UVB light people encounter comes from the sun. Of the solar ultraviolet energy that reaches the equator, about 5 percent is UVB.



Features

Gallium Nitride Based Material Photovoltaic Mode

High-precision detection, rapid response and operation

Good Visible Blindness

Display the maximum UVB radiation intensity for all-time

Trend chart display showing the past readings for UVB intensity

With temperature and humidity measurement

Only two buttons and easy to operate

Four AA Alkaline Batteries



Application

Monitoring UVB Phototherapy Lamp Intensity & Aging

Testing General UV Health Lamp

Testing Plant Growth UV Lights

Testing Eyewear UVB Blocking Capabilities

Measuring Outdoor UVB Including Shady Area UVB

Testing Window Film / Tin Transmission

Testing Acrylic Shield Transmission

Testing UVB for Aging and Spectral Analysis

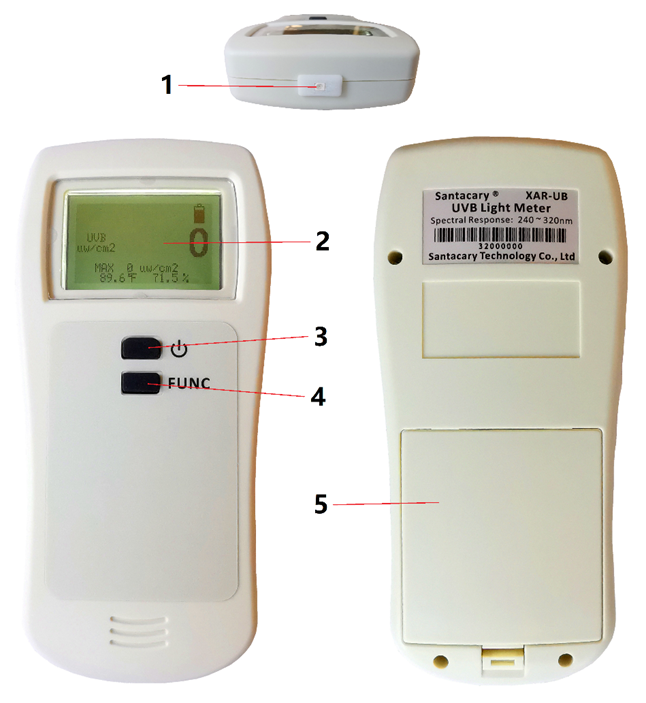

Device

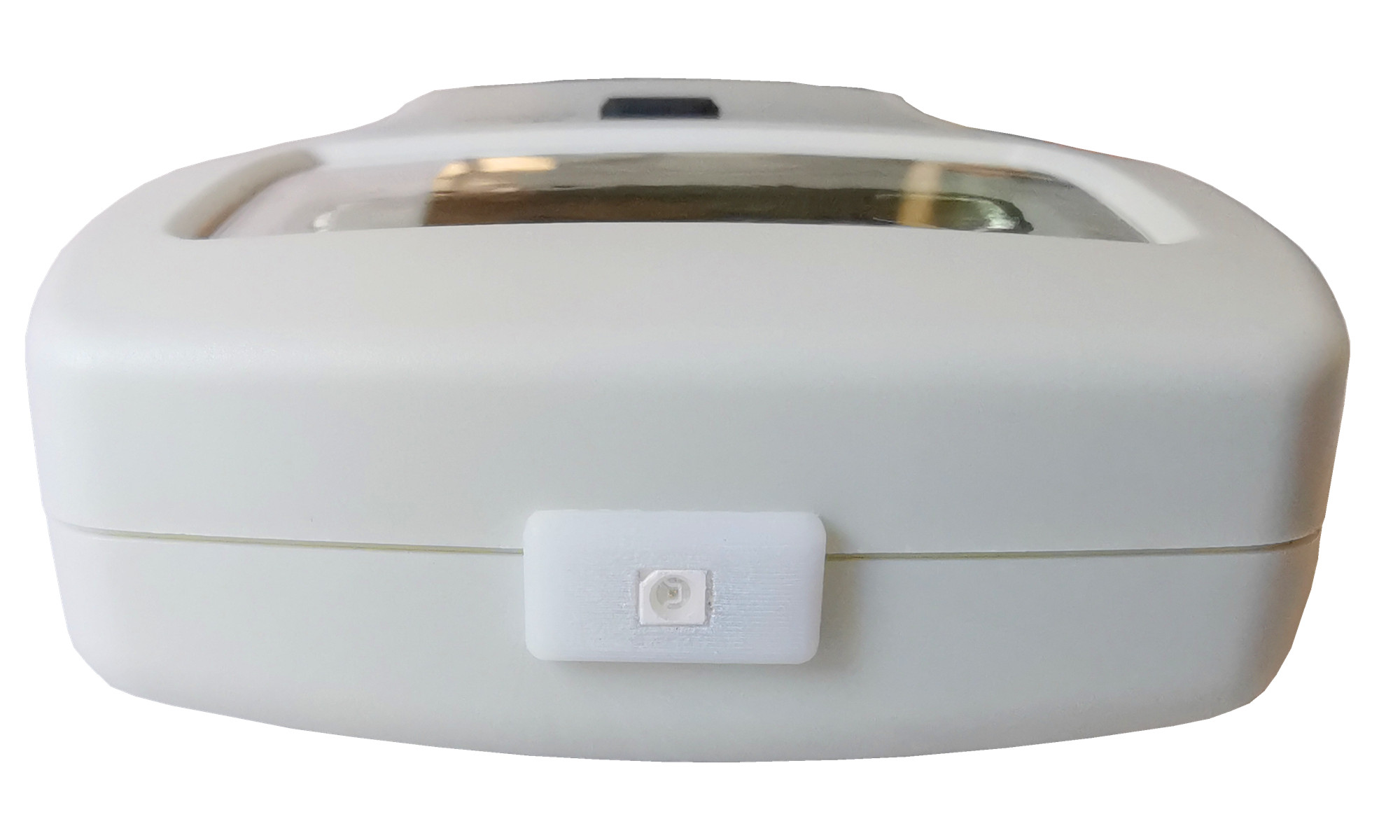

1.        UVB sensor

2.        LCD display

3.        Power button

4.        Function button

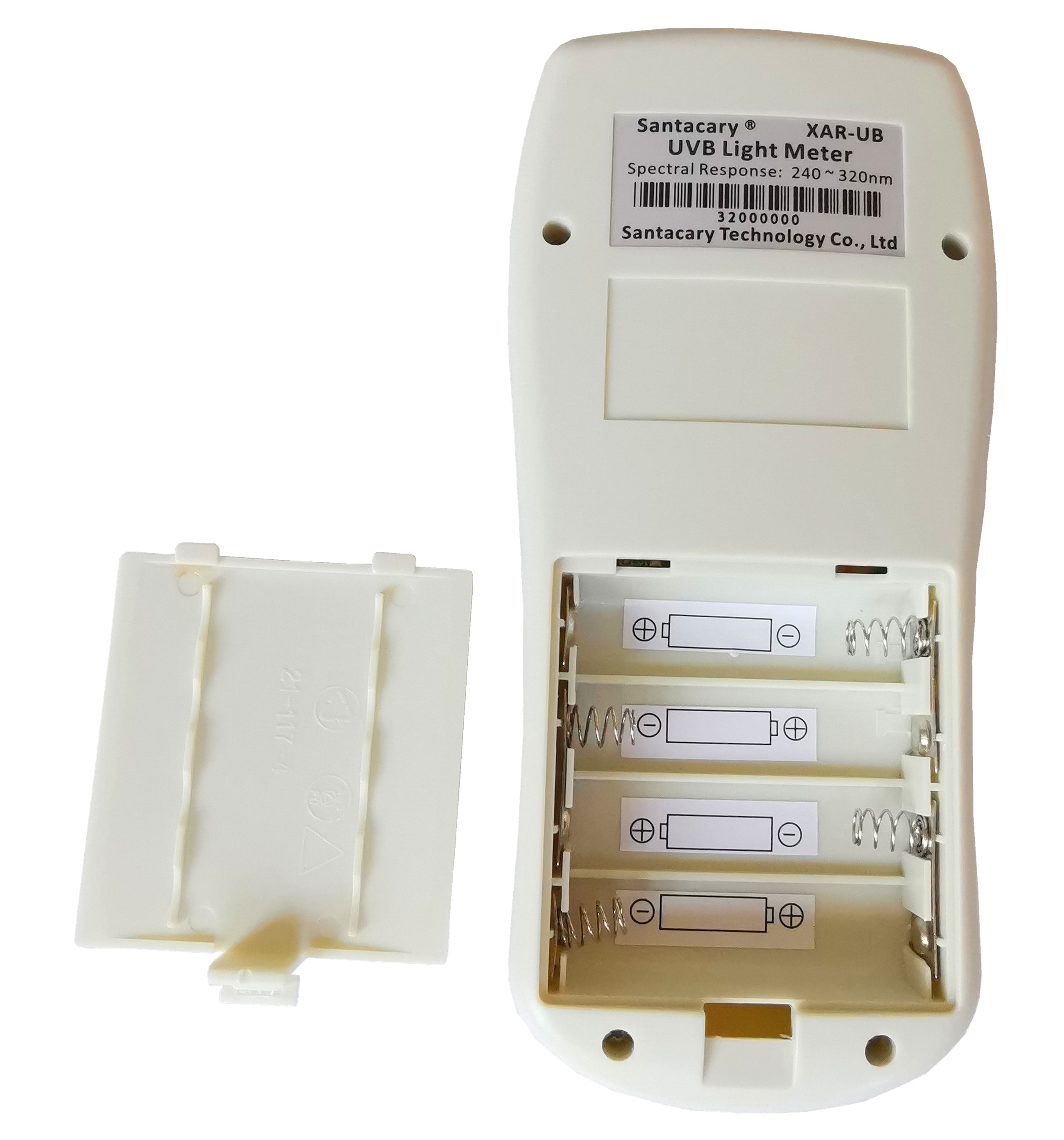

5.        Battery compartment back cover

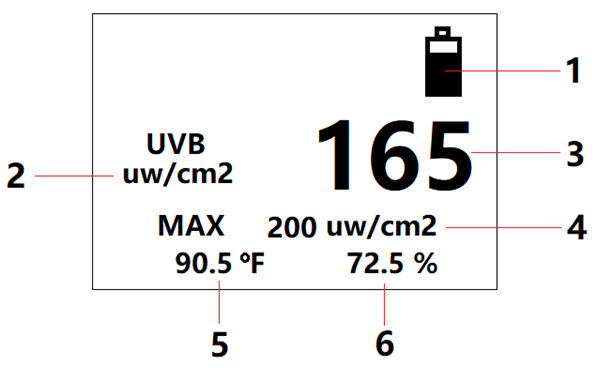

Normal Display

1.        Battery gauge

2.        Radiation intensity unit

3.        UVB radiation intensity

4.        Maximum UVB radiation intensity

5.        Temperature

6.        Relative humidity

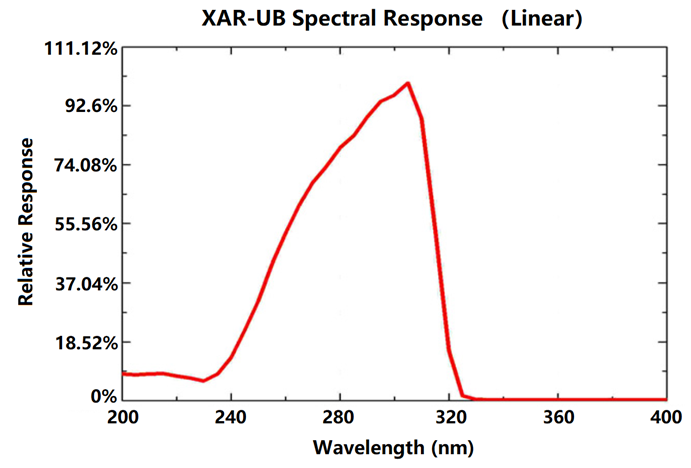

Spectral Response




Specifications

UVB Specification

UVB Measurement Range

0 to 40000 µW/cm2

Spectral Detection Range

240 to 320   nm

Peak point of Spectrum

305 nm

Measurement accuracy

±4% or ±1   digits

Resolution

1.0 µW/cm2

Temperature Range

-10 to 50°C (14 to 122°F)

Humidity Range

0 to 90%RH



Temperature Specification

Temperature Range

-10.0~60.0°C (14~140°F) display

Display Resolution

0.1°C (0.1°F)

Display Options

°C/°F switchable

Accuracy

±0.5°C (±0.9°F)

Response Time

5~30 seconds (device must equilibrate with   environment)



RH Specification

Measurement   Range

0.0~99.9%RH

Display   Resolution

1%RH

Accuracy

±4.5%RH

Response Time

<8 seconds   for 63% of step change



General

Operating

-10°C to 50°C (14°F to 122°F), 0~90%   RH non-condensing

Storage

-10°C to 60°C (14°F to 140°F), <99%   RH non-condensing

Power Supply

Four AA Alkaline Batteries

Dimensions

75x165x25 mm (2.95x6.49x0.98”)

Weight

118 grams (4.16 oz.) without   batteries
