Geiger Muller Counter and UVAB Light Meter MHK-G80
MHK-G80 has an internal Geiger Mueller tube to detect ionizing radiation and ultraviolet sensor to measure ultraviolet UVAB radiation. It can be used for ionizing radiation and UVAB light detection both indoor and outdoor, as well as in other similar environments.
Features
Install Geiger Muller tube to detect ionizing radiation.
Apply Gallium Nitride Based Material Photovoltaic sensor to detect UVAB light
Detect ionizing radiation such as Beta, Gamma, X-Ray.
Range of dose rate is 0.00~1000.00 µSv/h, 0.00~100.00 mR/h
Detectable Energy Range is 0.1~1 MeV.
Support Timed Count mode.
Support a data log function that provides up to 8 hours history of ionizing radiation level in Graphic Display.
Numeric Display contains ionizing radiation level reading in CPM, radiation level in µSv/h or mR/h, average CPM and µSv/h of a specific time frame, total count since power on, and ionizing radiation level (Normal/Medium/High).
Display UVI, and UVAB ultraviolet radiation intensity simultaneously
Display Type: 2.2" TFT Display
NOTE:
Do not place the meter inside a microwave oven as it can damage the unit. This meter is for detecting ionizing radiation such as alpha, beta, gamma, and x-rays. It will not detect non-ionizing radiation such as microwave emissions.

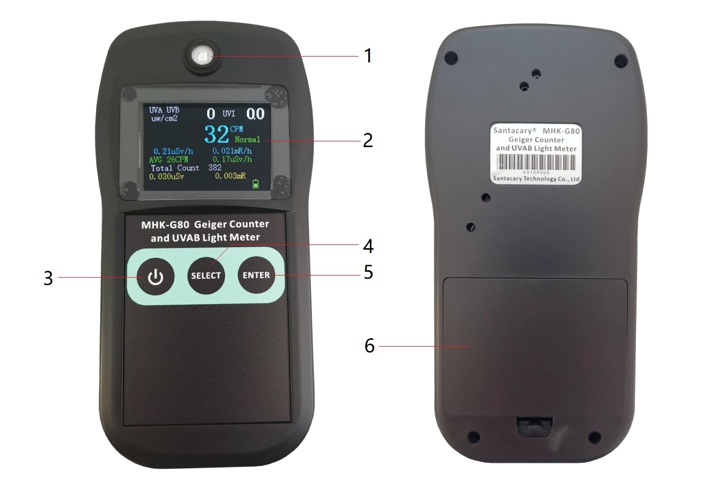

Device
1. UVAB light sensor
2. TFT display
3. Power button
4. Select button
5. Enter button
6. Battery compartment cover
Ultraviolet Index (UVI)
This meter displays the Ultraviolet Index (UVI) in Normal Display. Table 4 lists the risk of UVI.
Table UVI risk
UVI | 0-2.9 | 3.0-5.9 | 6.0~7.9 | 8.0~10.9 | 11+ |
Description | Low danger from the sun’s UV rays for the average person | Moderate risk of harm from unprotected sun exposure | High risk of harm from unprotected sun exposure | Very high risk of harm from unprotected sun exposure | Extreme risk of harm from unprotected sun exposure |

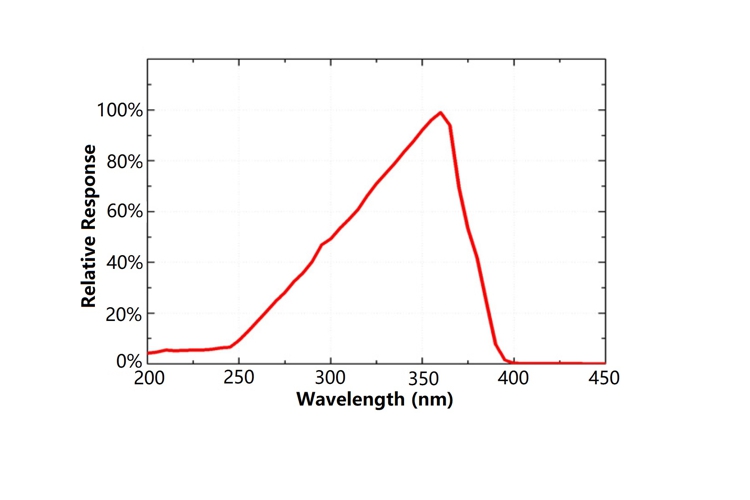

Spectral Response of UVAB
Specifications
Geiger Counter Specifications
Ionizing radiation detection | Beta, Gamma, X-Ray |
Range of dose rate | 0.01 ~ 1000.00µSv/h |
0.00 ~ 100.00 mR/h | |
Detectable Energy Range | 0.1~1.0 MeV |
Accuracy | ±15% |
Own Background | 0.4 pulses/s |
Maximum Dose Reading | 99,999,999.99 µSv or 9,999,999.99 mR |
UVAB Measurement Range | 0 to 50,000 µW/cm2 (50 mW/cm2) |
UVI Measurement Range | 0 to 130 |
Spectral Detection Range | 240 to 395 nm |
Peak point | 360nm |
Measurement accuracy | ±4% or ±1 digits |
Resolution | 1.0 µW/cm2 |
Temperature Range | -10 to 50°C (14 to 122°F) |
Humidity Range | 0 to 90%RH |
General
Environment | Indoor or outdoor |
Display | 2.2" TFT LCD |
Operating | 14°F to 122°F (-10°C to 50°C), 0~90% RH non-condensing |
Storage | 14°F to 140°F (-10°C to 60°C), 0~80% RH non-condensing |
Power Supply | Three AA Alkaline Batteries |
Dimensions | 74x148x28mm (2.91x5.83x1.1") |
Weight | 145 grams (5.11 oz.) without batteries |
