BE500 Portable pH Meter

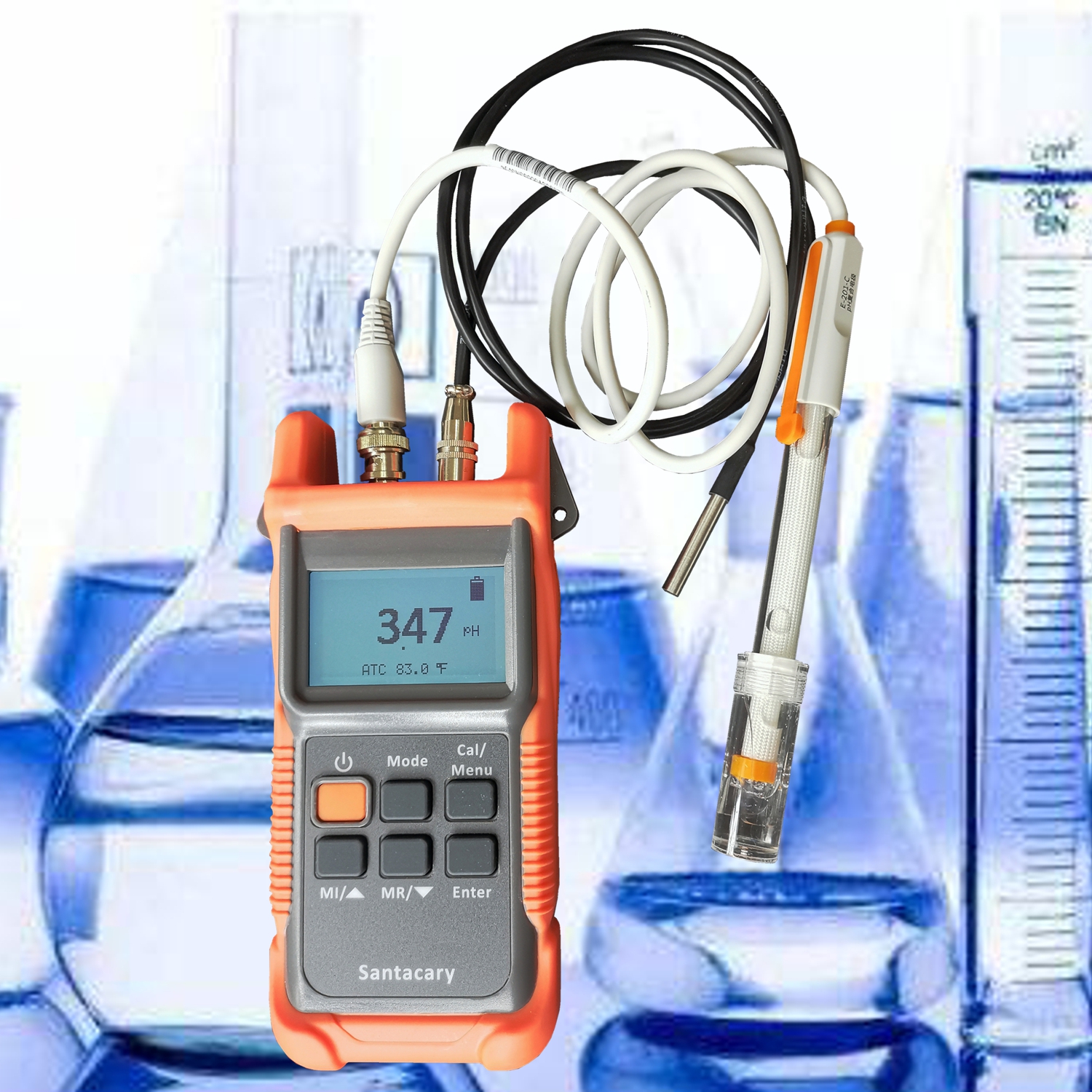

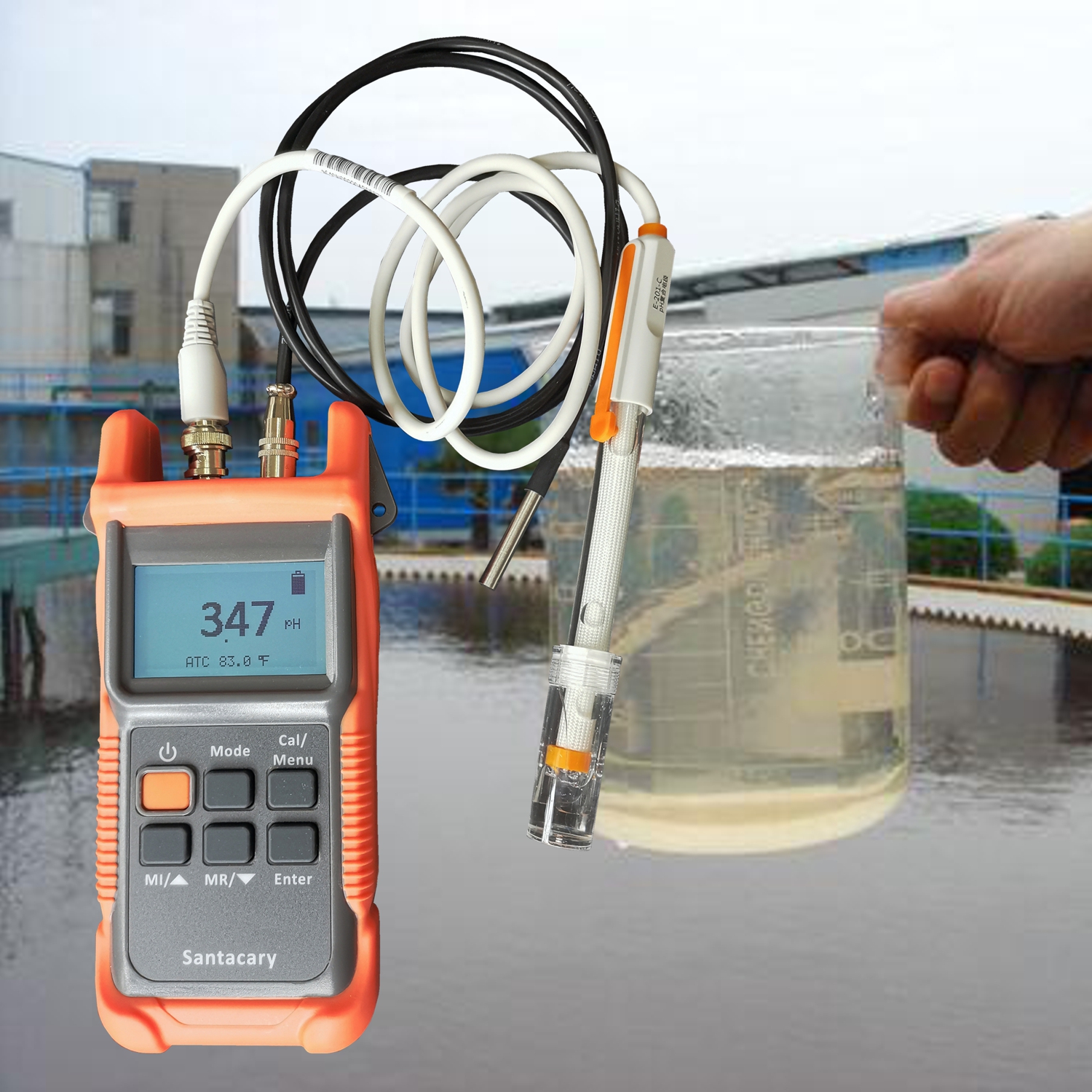

BE500 Portable Lab Grade pH Meter Kit



BE500 pH Meter Kit is an outstanding combination of advanced electronics design and sensor technology. It's the most economical choice of a precise pH meter.

BE500 is perfect for fast, accurate pH measurement for the full range from 0.01 - 14.00 pH, utilizing a 1~3 point calibration. Automatic temperature compensation (ATC) ensures accuracy from 0 to 100°c. Ideal for wide range of applications, such as educational, laboratory, agriculture and horticulture, as well as water and environmental analysis.

The kit comes complete with pH Meter, pH Probe, and carrying case convenient for in-field use.







FEATURES

-- Measuring principle: Glass electrode method

-- pH Range  : 0.00 to 14.00 pH with max accuracy of ±0.01 pH

-- Support 1, 2 and 3 points pH calibration

-- Automatic and Manual Temperature Compensation provides accurate reading over the entire range

-- Selectable pH buffer group (USA / NIST)

-- Equipped with a large backlit LCD display

-- Battery indicator shows the remaining battery capacity

-- Comes with a carrying case convenient for in-field use

-- Powered by Li-ion battery of 4.2V, 1500mAh

-- Includes a Mini USB cable with Wall USB charger

-- Kit includes: pH Meter, pH Probe, ATC temperature sensor, pH Calibration Buffer Powder and Carrying case.




DEVICE

1. pH electrode input BNC jack

2. Temperature probe input jack

3. Mini USB port on top of the meter

4. LCD Display

5. Keypad and Panel

6. Tilt stand is located on the rear of the meter






SPECIFICATIONS

pH Specification:

pH Range

0.00 to 14.00 pH

Measuring principle

Glass electrode

Resolution

0.01 pH

Accuracy

±0.01 pH

Calibration Points

1 to 3 points

Buffer Groups

4.01, 7.00, 10.01 (USA)                  4.01, 6.86, 9.18 (NIST)

Temperature Compensation

Automatic / Manual (0 to   100 °C)



Temperature Specification:

Temperature Range

0 to 100.0 °C (32.0 to 212.0 °F)

Resolution

± 0.1°C (± 0.1°F)

Display Options

°C/°F switchable

Accuracy

± 0.5°C (± 0.9°F)



General Specification:

Operating Temperature

5 to 60.0 °C (41.0 to 140.0 °F)

Power Supply

Li-ion battery (4.2V,1500mAh),Mini USB cable with Wall USB charger

Dimensions

90x175x42mm (3.54x6.89x1.65")

Weight

258 grams (9.1 oz.)






MATERIALS SUPPLIED

-- Meter

-- pH Electrode

-- Temperature Sensor

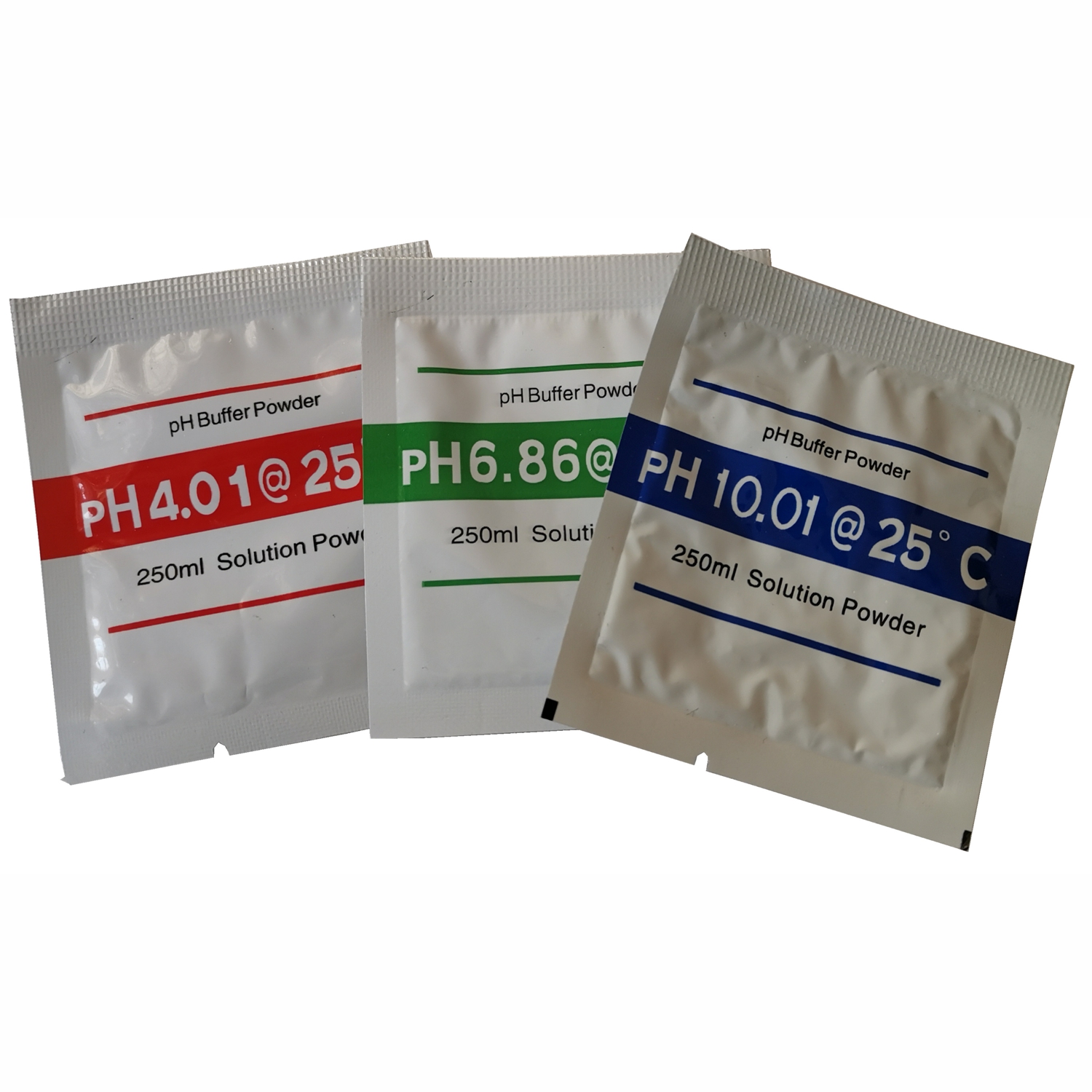

-- Buffer Powder Set

-- Portable Bag for Meter

-- Instruction Manual

-- Mini USB Cable with Wall USB Charger
