iU2-C UVC Light Meter

Products > Ultraviolet UVC Light Meter > iU2-C UVC Light Meter

iU2-C UVC Light Meter

iU2-C UVC Light Meter


iU2-C is a precise meter that measures ultraviolet UVC radiation.

UVC wavelength is 200-275 nm, also known as short wave sterilization ultraviolet. Peak wavelength of the curve between it and bactericidal efficiency (265 nm) is very close, so when 253.7 nm radiation reaches a certain value, it can be used to treat intestinal bacteria, aspergillus flavus and HBsAg (hepatitis B surface antigen) and other pathogens were killed in a short time. Ultraviolet germicidal lamp emits UVC short wave ultraviolet.



Features

 Gallium Nitride Based Material Photovoltaic Mode

High-precision detection, rapid response and operation

Good Visible Blindness

 Only one power button and easy to operate

Two AAA Alkaline Batteries



Application

Monitoring UVC Germicidal Lamp Intensity & Aging

Monitoring Water Treatment Disinfection Lamp Intensity & Aging

Testing Eyewear UVC Blocking Capabilities

Measuring Germicidal Lamp Fixture Leakage

Testing UVC Intensity in Semiconductor Fabrication, Offset Printing, Environmental Monitoring and Industrial Process Control.

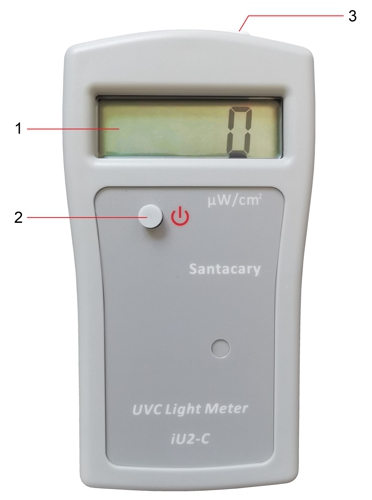

Device

1.        LCD display

2.        Power button

3.        UVC sensor





Operation

When the device is turned off, press Power button to turn on the unit. Press Power button again to turn off the unit. When the unit is first turned on, it performs 5 seconds countdown for device warm up, then enters normal display. The device updates readings every 2 seconds. The UVC radiation intensity unit is µW /cm2.

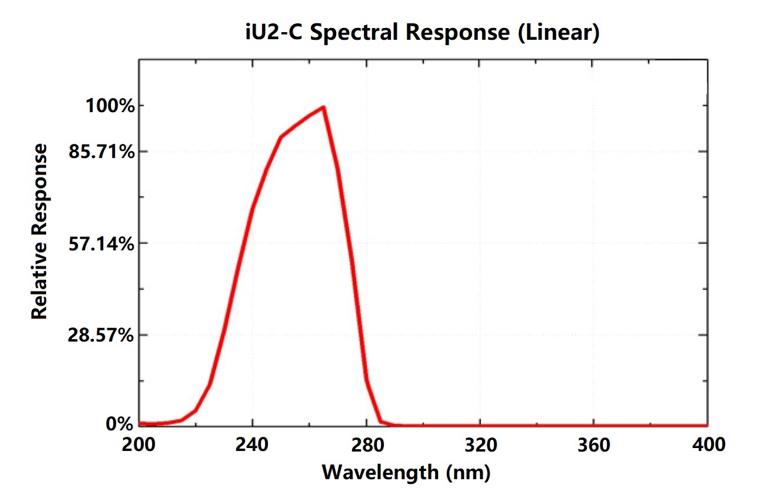

Spectral Response



Specifications

UVC Specification

UVC Measurement Range

0 to 3000 µW/cm2

Spectral Detection Range

220 to 280   nm

Peak point of Spectrum

265 nm

Measurement accuracy

±4% or ±1   digits

Resolution

1.0 µW/cm2

Temperature Range

-10 to 50°C (14 to 122°F)

Humidity Range

0 to 90%RH



General

Operating

-10°C to 50°C (14°F to 122°F), 0~90%   RH non-condensing

Storage

-10°C to 60°C( 14°F to 140°F), <99%   RH non-condensing

Power Supply

Two AAA Alkaline Batteries

Dimensions

67x124x25 mm (2.64x4.88x0.98”)

Weight

123 grams (4.34 oz.) with batteries



Calibration Report
