UVC Light Meter MHK-UC

MHK-UC UVC Light Meter

Introduction

MHK-UC is a precise meter that measures ultraviolet UVC radiation.

UVC wavelength is 200-275nm, also known as short wave sterilization ultraviolet. UVC light applications are used for odor control, sterilization, and elimination of VOCs and industrial exhausts containing solvents. The use of UVC in odor control has many applications, including wastewater plants, farms, HVAC (Heating, Ventilation and Air Conditioning), and food processing plants.

Features

Gallium Nitride Based Material Photovoltaic Mode

Display the UVC radiation intensity and UVC dose for all-time

Simultaneously displaying ambient temperature and humidity

Application

Monitoring UVC Lamp Intensity & Aging

Measuring the radiation dose of UVC Lamp

Testing Eyewear UVC Blocking Capabilities

Measuring UVC Lamp Fixture Leakage

Testing UVC Intensity in Semiconductor Fabrication, Offset Printing, Environmental Monitoring and Industrial Process Control.

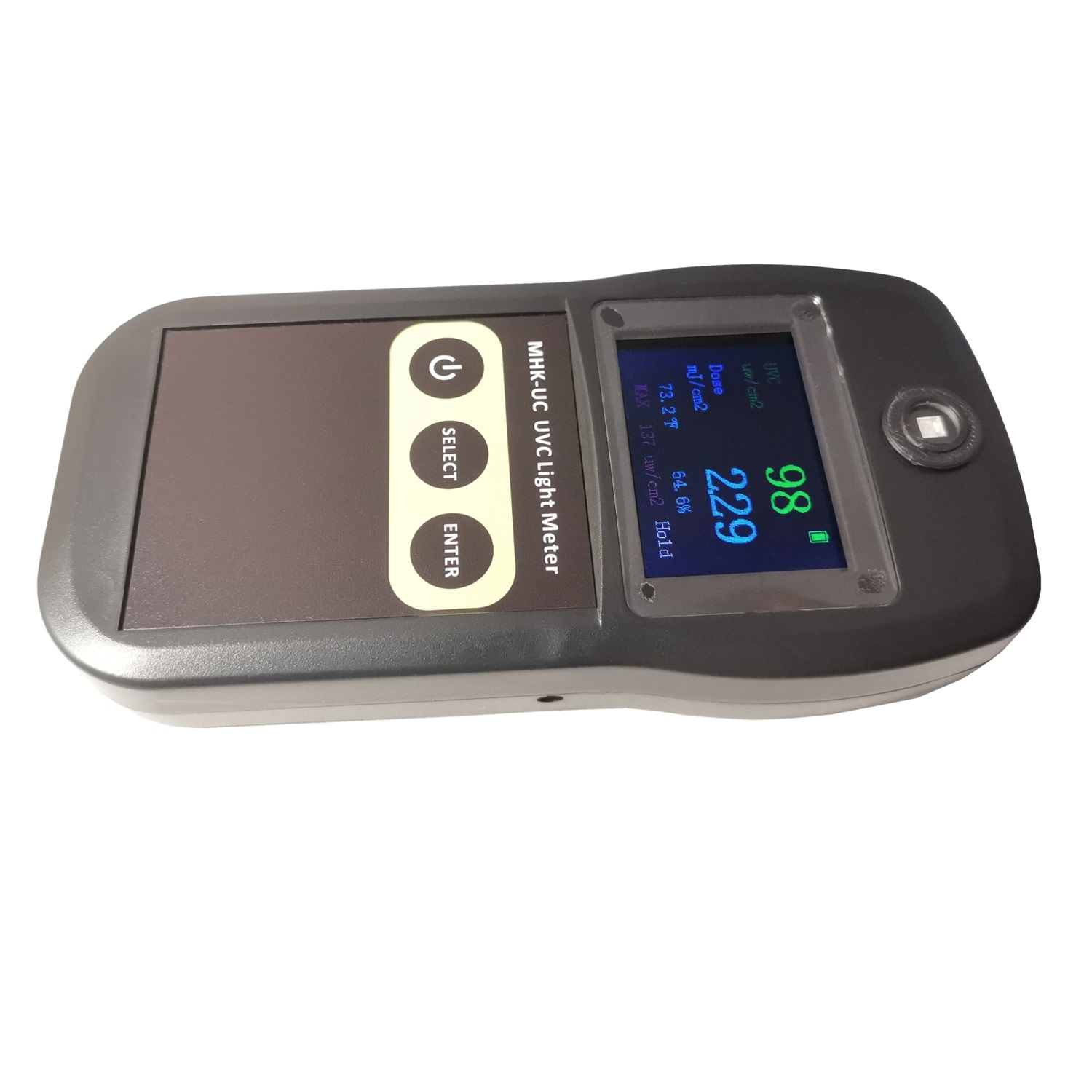

Device

1.        UVC sensor

2.        TFT display

3.        Power button

4.        Select button

5.        Enter button

6.        Battery compartment cover

Display

1.        Battery gauge

2.        UVC Intensity unit

3.        UVC intensity value

4.        UVC Dose unit

5.        UVC dose value

6.        Air temperature

7.        % relative humidity

8.        Maximum UVC intensity

UVC Dosage

UVC dosage, also called “exposure dosage”, is a way to measure how much total UVC energy has radiated a particular surface. This is the most crucial element in UVC system design, because UVC dosage is the primary determinant in whether or not the UVC radiation have successfully achieved pathogen inactivation. This meter calculates the dose in real time and displays it in the screen.

UVC Dose formula:

UVC Dose (J/cm2)=UVC Intensity (W/cm2) x Exposure time (seconds)

Or

UVC Dose (µJ/cm2)=UVC Intensity (µW/cm2) x Exposure time (seconds)

The dose units’ conversions are as follows:

1 kJ/cm2=1000 J/cm2

1 J/cm2=1000 mJ/cm2

1 mJ/cm2=1000 µJ/cm2

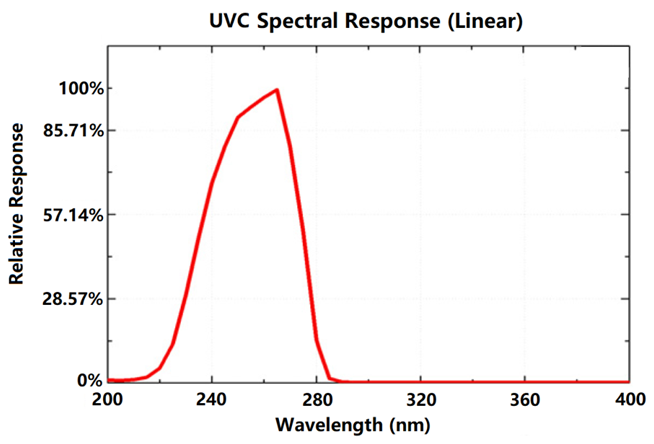

Spectral Response

The peak point of spectral response is at 265 nm.

Specifications

UVC Specification

Temperature Specification

RH Specification

General
