XAR-UC UVC Light Meter
XAR-UC UVC Light Meter
XAR-UC is a precise meter that measures ultraviolet UVC radiation.
UVC wavelength is 200-275 nm, also known as short wave sterilization ultraviolet. Peak wavelength of the curve between it and bactericidal efficiency (265 nm) is very close, so when 253.7 nm radiation reaches a certain value, it can be used to treat intestinal bacteria, Aspergillus flavus and HBsAg (hepatitis B surface antigen) and other pathogens were killed in a short time. Ultraviolet germicidal lamp emits UVC short wave ultraviolet.
UVC light applications are used for odor control, sterilization, and elimination of VOCs and industrial exhausts containing solvents. Germicidal UV purifies the air from microorganisms that cause illness and contaminants. The use of UVC in odor control has many applications, including wastewater plants, farms, HVAC (Heating, Ventilation and Air Conditioning), and food processing plants.
Features
² Gallium Nitride Based Material Photovoltaic Mode
² High-precision detection, rapid response and operation
² Good Visible Blindness
² Display the maximum UVC radiation intensity for all-time
² With temperature and humidity measurement
² Only two buttons and easy to operate
² Four AA Alkaline Batteries
Application:
² Monitoring UVC Germicidal Lamp Intensity & Aging
² Monitoring Water Treatment Disinfection Lamp Intensity & Aging
² Testing Eyewear UVC Blocking Capabilities
² Measuring Germicidal Lamp Fixture Leakage
² Testing UVC Intensity in Semiconductor Fabrication, Offset Printing, Environmental Monitoring and Industrial Process Control.

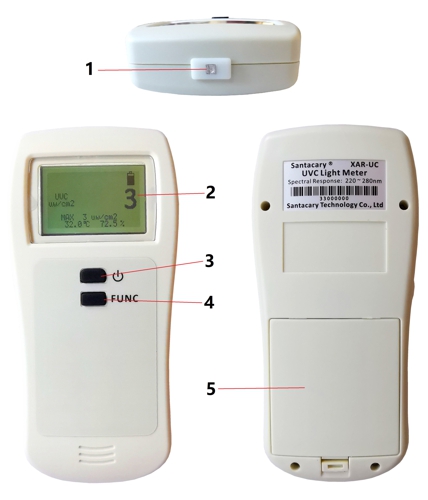

Device
1. UVC sensor
2. LCD display
3. Power button
4. Function button

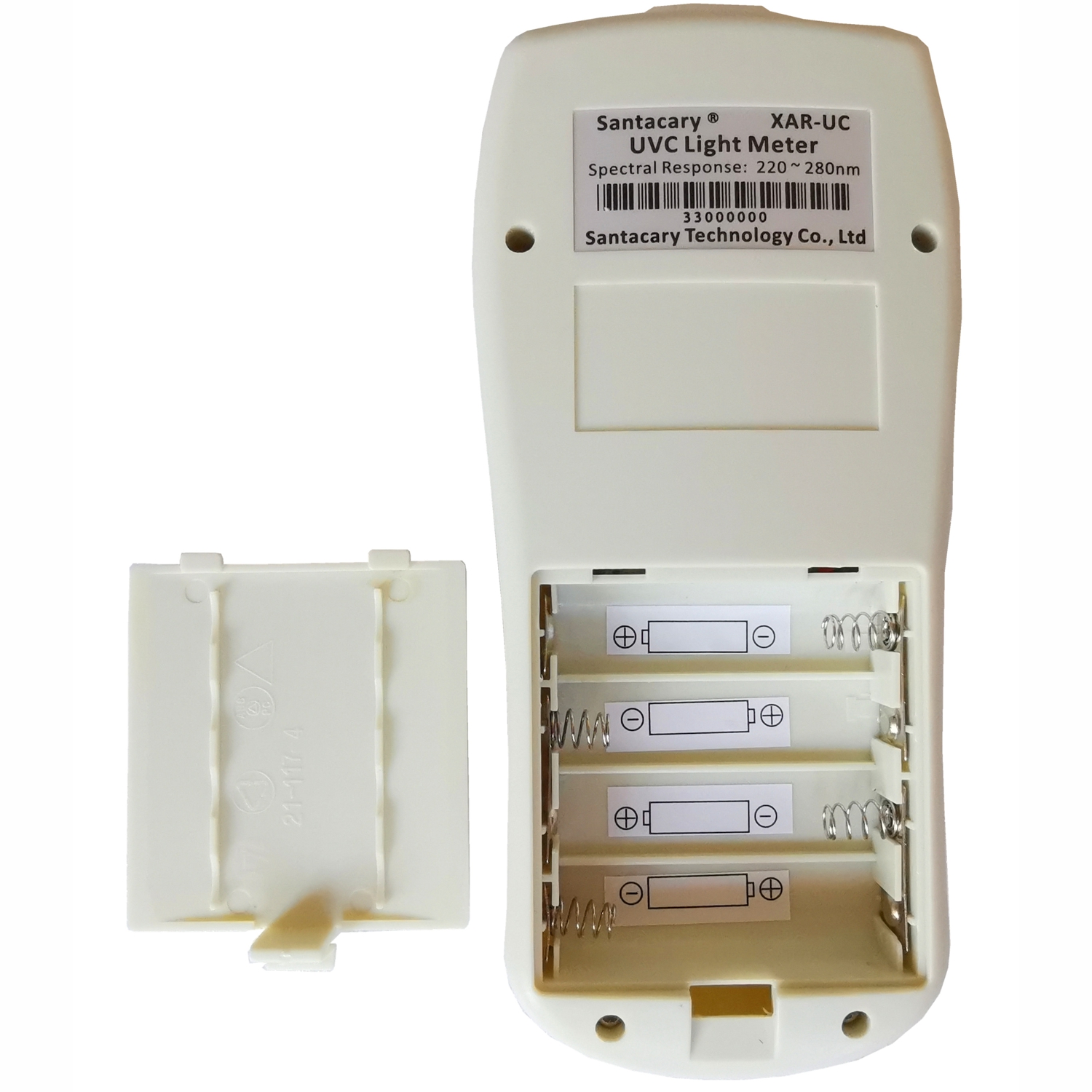

5. Battery compartment back cover

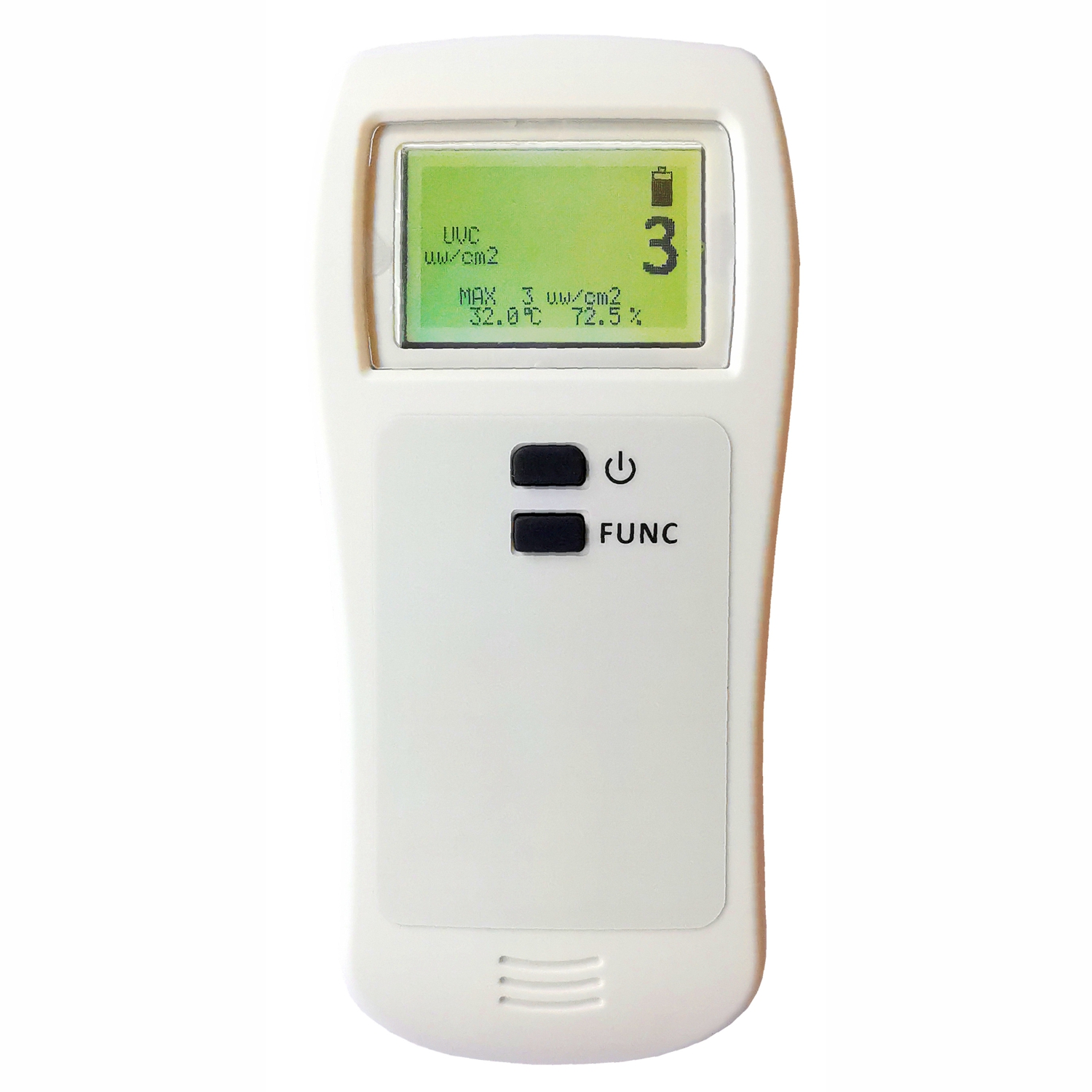

DISPLAY
1. Battery gauge
2. Radiation intensity unit
3. UVC radiation intensity
4. Maximum UVC radiation intensity
5. Temperature
6. Relative humidity

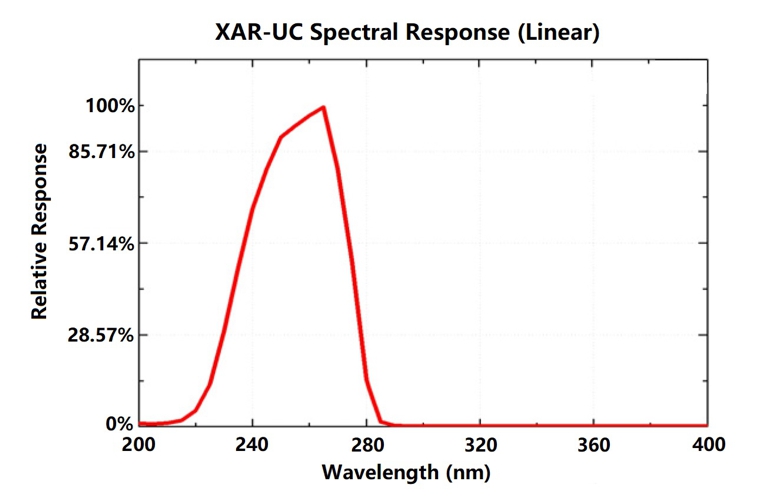

Spectral Response
Specifications
UVC Specification
UVC Measurement Range | 0 to 3500 µW/cm2 |
Spectral Detection Range | 220 to 280 nm |
Peak point of Spectrum | 265 nm |
Measurement accuracy | ±4% or ±1 digits |
Resolution | 1.0 µW/cm2 |
Temperature Range | -10 to 50°C (14 to 122°F) |
Humidity Range | 0 to 90%RH |
Temperature Specification
Temperature Range | -10.0~60.0°C (14~140°F) display |
Display Resolution | 0.1°C (0.1°F) |
Display Options | °C/°F switchable |
Accuracy | ±0.5°C (±0.9°F) |
Response Time | 5~30 seconds (device must equilibrate with environment) |
RH Specification
Measurement Range | 0.0~99.9%RH |
Display Resolution | 1%RH |
Accuracy | ±4.5%RH |
Response Time | <8 seconds for 63% of step change |
General
Operating | -10°C to 50°C (14°F to 122°F), 0~90% RH non-condensing |
Storage | -10°C to 60°C( 14°F to 140°F), <99% RH non-condensing |
Power Supply | Four AA Alkaline Batteries |
Dimensions | 75x165x25 mm (2.95x6.49x0.98”) |
Weight | 118 grams (4.16 oz.) without batteries |
MATERIALS SUPPLIED
² Santacary XAR-UC UVC Light Meter
² Protector Bag
² English User Manual
² Four AA Alkaline Batteries
Cleaning and Storage
The front panel and case can be cleaned carefully with a soft wet cloth. Allow drying completely before using. Do not use aromatic hydrocarbons or chlorinated solvents for cleaning.
