XAR-UCT is a UVC Light Meter with 9 inch bendable gooseneck. It is a precise meter that measures ultraviolet UVC radiation. It has a 9 inch bendable gooseneck that can locate and detect the UVC light even in hard-to-reach areas.
UVC wavelength is 200-275nm, also known as short wave sterilization ultraviolet. Peak wavelength of the curve between it and bactericidal efficiency (265nm) is very close, so when 253.7nm radiation reaches a certain value, it can be used to treat intestinal bacteria, Aspergillus flavus and HBsAg (hepatitis B surface antigen) and other pathogens were killed in a short time. Ultraviolet germicidal lamp emits UVC short wave ultraviolet.
UVC light applications are used for odor control, sterilization, and elimination of VOCs and industrial exhausts containing solvents. Germicidal UV purifies the air from microorganisms that cause illness and contaminants. The use of UVC in odor control has many applications, including wastewater plants, farms, HVAC (Heating, Ventilation and Air Conditioning), and food processing plants.
Features
Gallium Nitride Based Material Photovoltaic Mode
High-precision detection, rapid response and operation
Good Visible Light Blindness
9 inch bendable gooseneck that can locate and detect the UVC light even in hard-to-reach areas
Display the maximum UVC radiation intensity for all-time
Trend chart display showing the past readings for UVC intensity
With temperature and humidity measurement
Only two buttons and easy to operate
Four AA Alkaline Batteries
Application
Monitoring UVC Germicidal Lamp Intensity & Aging
Monitoring Water Treatment Disinfection Lamp Intensity & Aging
Testing Eyewear UVC Blocking Capabilities
Measuring Germicidal Lamp Fixture Leakage
Testing UVC Intensity in Semiconductor Fabrication, Offset Printing, Environmental Monitoring and Industrial Process Control.

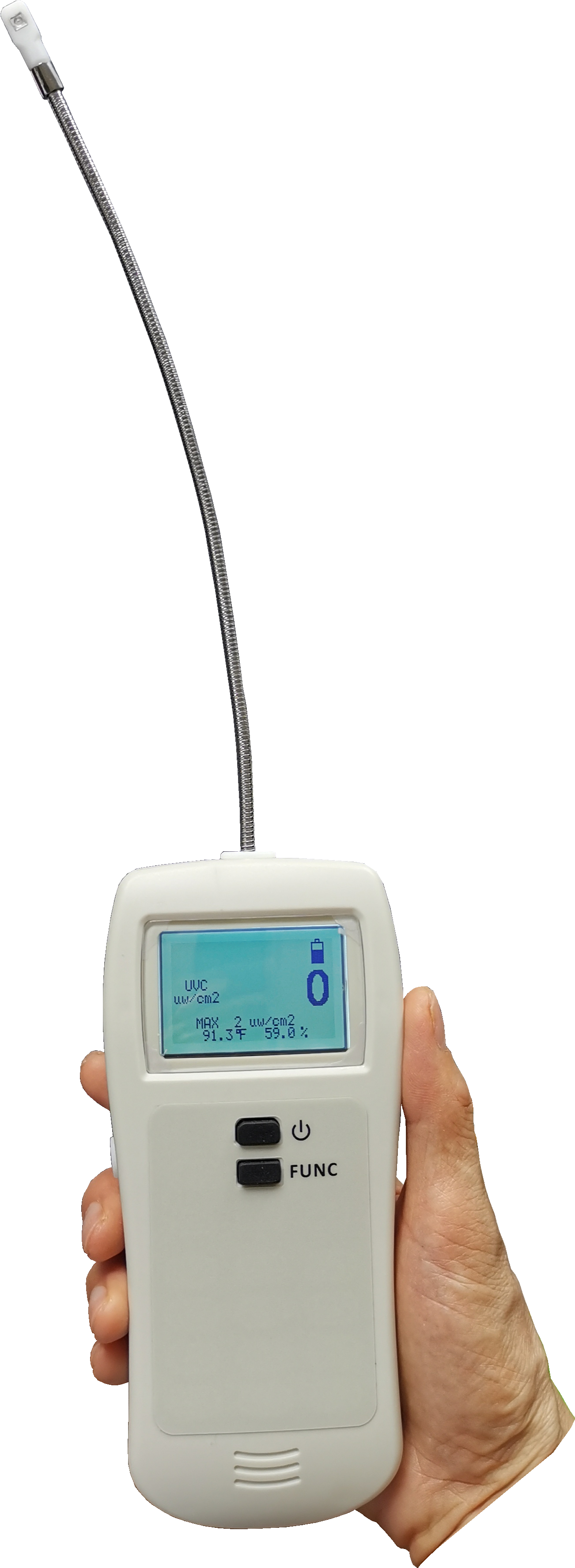

Detect the UVC light in hard-to-reach areas

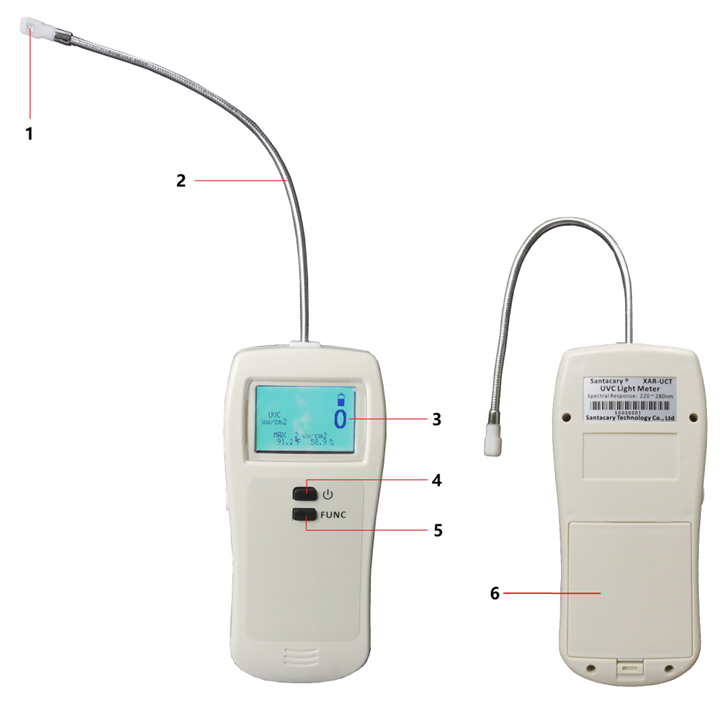

Device
1. UVC sensor
2. Bendable gooseneck
3. LCD display
4. Power button
5. Function button
6. Battery compartment cover

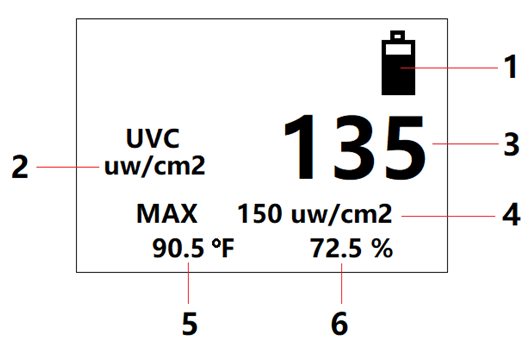

Normal Display
1. Battery gauge
2. Radiation intensity unit
3. UVC radiation intensity
4. Maximum UVC radiation intensity
5. Temperature
6. Relative humidity

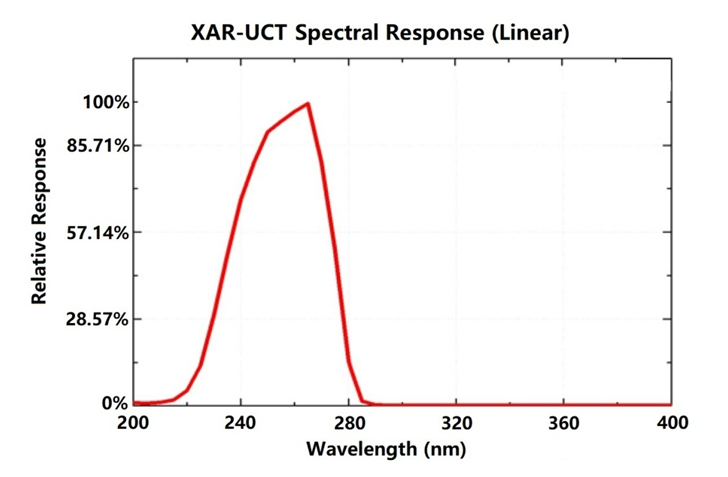

Spectral Response
The peak point (calibration point) of spectral response is at 265 nm.
Specifications
UVC Specification
UVC Measurement Range | 0 to 3500 µW/cm2 |
Spectral Detection Range | 220 to 280 nm |
Peak point of Spectrum | 265 nm |
Measurement accuracy | ±4% or ±1 digits |
Resolution | 1.0 µW/cm2 |
Temperature Range | -10 to 50°C (14 to 122°F) |
Humidity Range | 0 to 90%RH |
Length of bendable gooseneck | 9 inch |
Temperature Specification
Temperature Range | -10.0~60.0°C (14~140°F) display |
Display Resolution | 0.1°C (0.1°F) |
Display Options | °C/°F switchable |
Accuracy | ±0.5°C (±0.9°F) |
Response Time | 5~30 seconds (device must equilibrate with environment) |
RH Specification
Measurement Range | 0.0~99.9%RH |
Display Resolution | 1%RH |
Accuracy | ±4.5%RH |
Response Time | <8 seconds for 63% of step change |
General
Operating | -10°C to 50°C (14°F to 122°F), 0~90% RH non-condensing |
Storage | -10°C to 60°C (14°F to 140°F), <99% RH non-condensing |
Power Supply | Four AA Alkaline Batteries |
Dimensions | 75x165x25 mm (2.95x6.49x0.98”) without gooseneck |
Weight | 139 grams (4.9 oz.) without batteries |
MATERIALS SUPPLIED
Santacary XAR-UCT UVC Light Meter
Protector Bag
English User Manual
Cleaning and Storage
The front panel and case can be cleaned carefully with a soft wet cloth. Allow drying completely before using. Do not use aromatic hydrocarbons or chlorinated solvents for cleaning.
Warranty
The XAR-UCT is warranted to be free from defects in material and workmanship for a period of two year from the date of purchase. This warranty covers normal operation and does not cover misuse, abuse, alteration, neglect, improper maintenance.
