Water Chiller AMG120

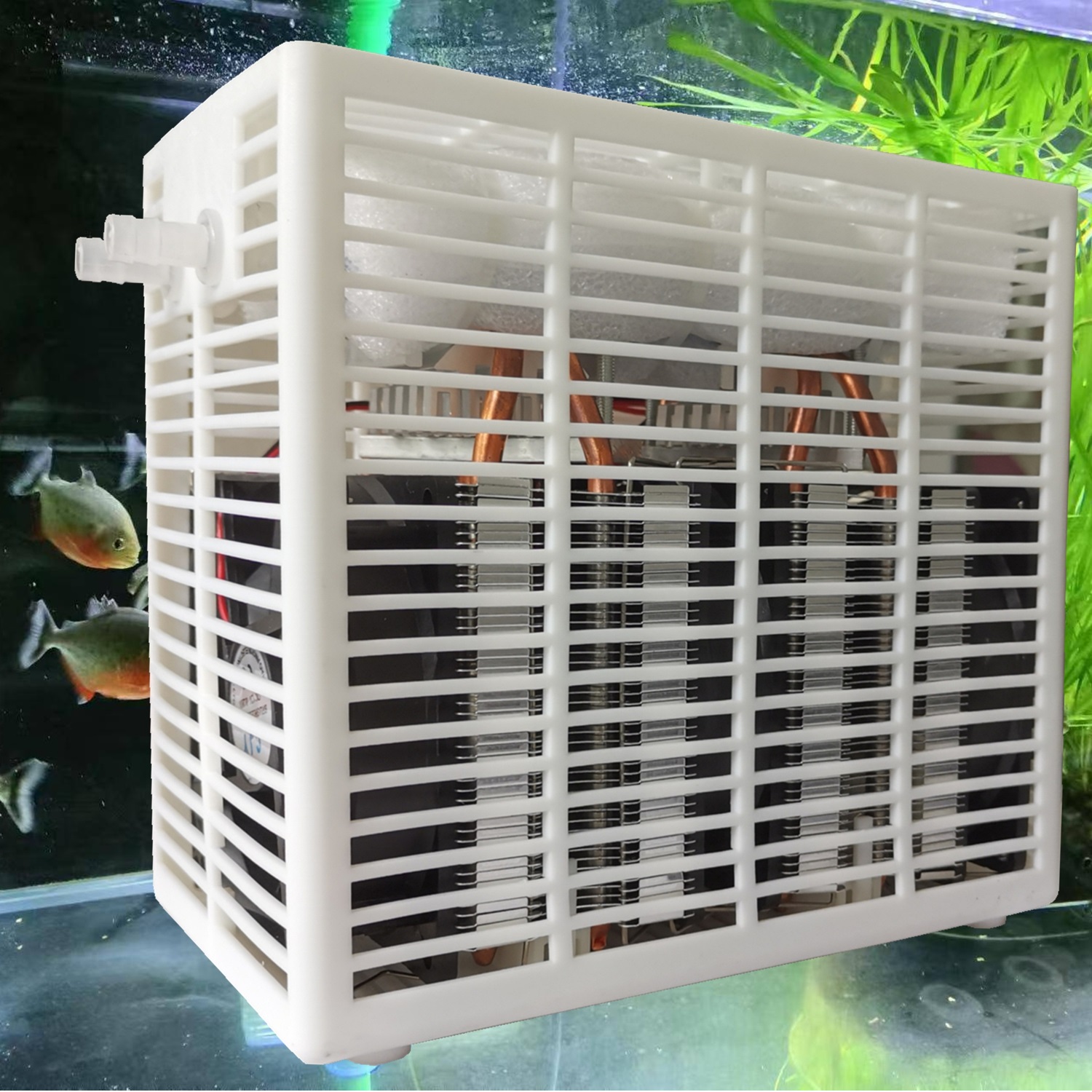

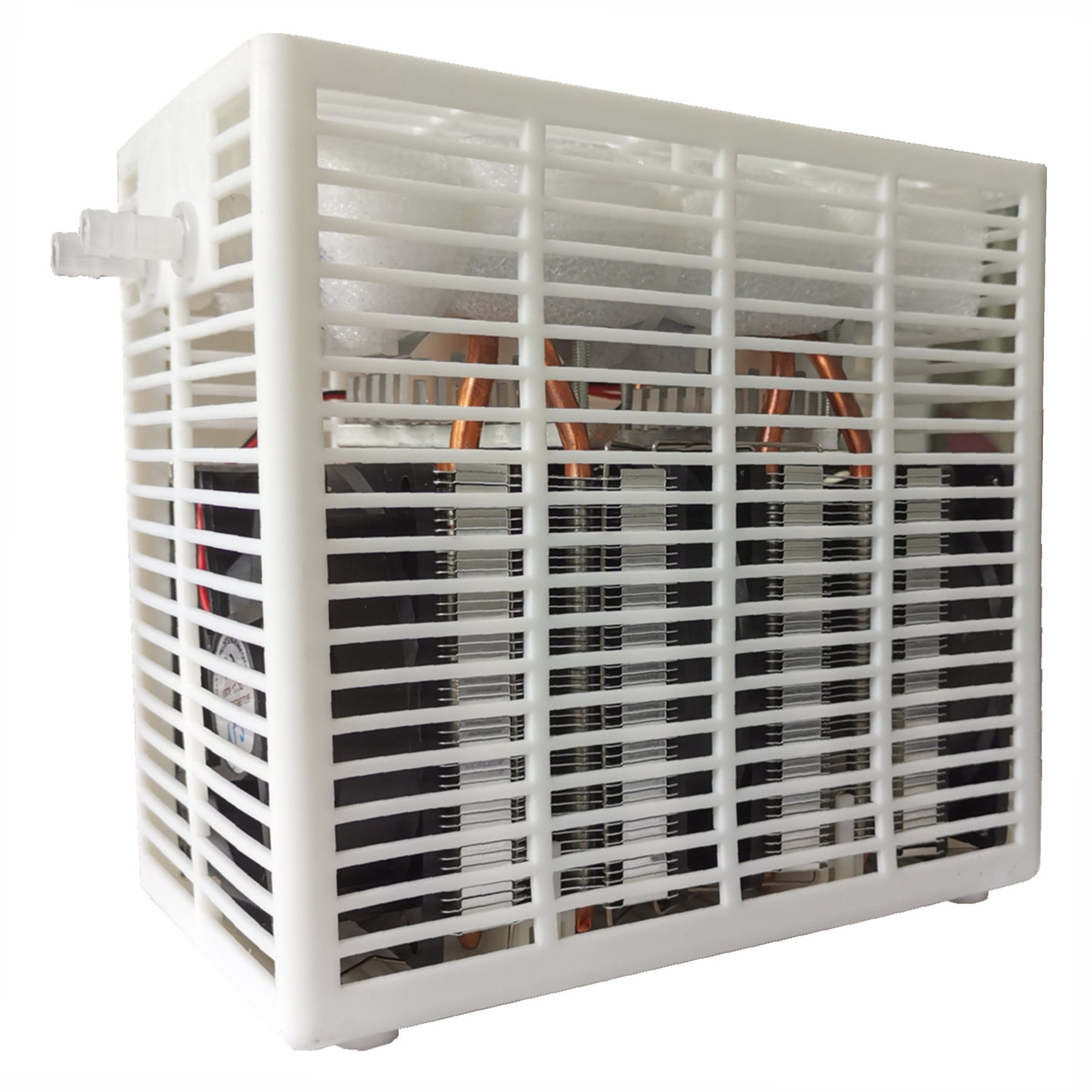

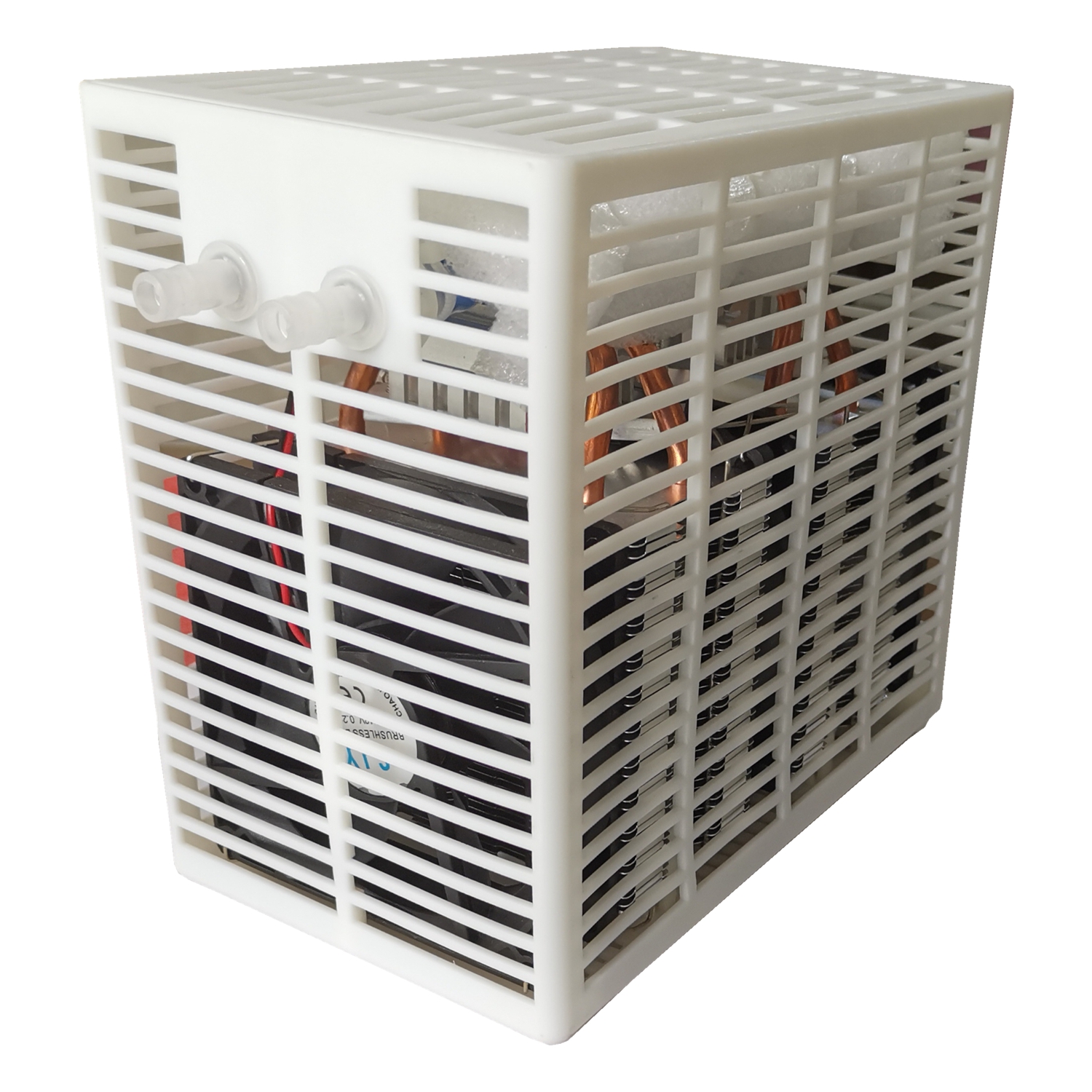

AMG120 Water Chiller

AMG120 water chiller adopts high-quality semiconductor cooling technology (TEC, Thermo Electric Cooler) with large cooling capacity, heat pipes and aluminum cold forged blades for air-cooled radiators, effectively ensuring low cooling and cooling efficiency to achieve the best cooling effect. The heat radiator end has built-in silent fan, dual sided exhaust, and heat pipes technology. By using AMG120, the cooling rate of 8 Gallon water is approximately 1.27℃/hour (2.2℉/hour) depended on environmental temperature and heat load. AMG120 has no temperature control.

This water chiller is suitable for safe use in freshwater and slightly salty seawater environments. It creates a healthy and comfortable environment for fish, axolotl, shrimp, jellyfish, and coral reefs in the hot summer. AMG120 can also be used as a small hydroponic water chiller.

Features

By using AMG120, the cooling rate of 8 Gallon fresh water is approximately 1.27℃/hour (2.2℉/hour). No temperature control.

AMG120 can be used in freshwater and slightly salty seawater environments.

Using heat pipes technology, the cooling fan is quiet and the noise is 62.5 dB at 10cm.

Provide a power adapter with 110-240V input, DC12V, 12A output.

Specifications

Technology: Semiconductor thermo electric cooling(TEC)

Cooling water volume: ≤8 Gallon /30.2L

Cooling effect: Cool down by 1.27℃/hour or 2.2℉/hour for 8 Gallon fresh water

Water pump Flow: 200-300L/H

Water Pipe: Inside diameter 8mm

Voltage: DC 12V;

Rated current: 12A

Power Consumption: 144W

Heat dissipation method: heat pipes and air cooling

Noise of cooling fan: 62.5dB at 10cm

Product Dimensions: 205*107*170mm/8.07*4.21*6.69 inch

Material: Aluminum alloy and resin

Weight: Approx. 1062g without accessories

Power Input

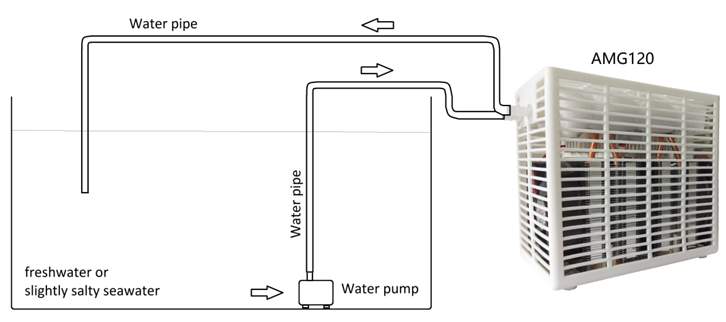

Example of cooling system

NOTE

Please make sure the water volume is less than 8 Gallon /30.2L especially in hot summer for better cooling effect. If the indoor temperature is too high, the recommended water volume is less than 8 Gallon /30.2L. The cooling effect will be greatly affected by the ambient temperature.
