Ozone Gas Detector MHK-OZ1 0-1 ppm
Ozone Gas Detector MHK-OZ1 0-1 ppm

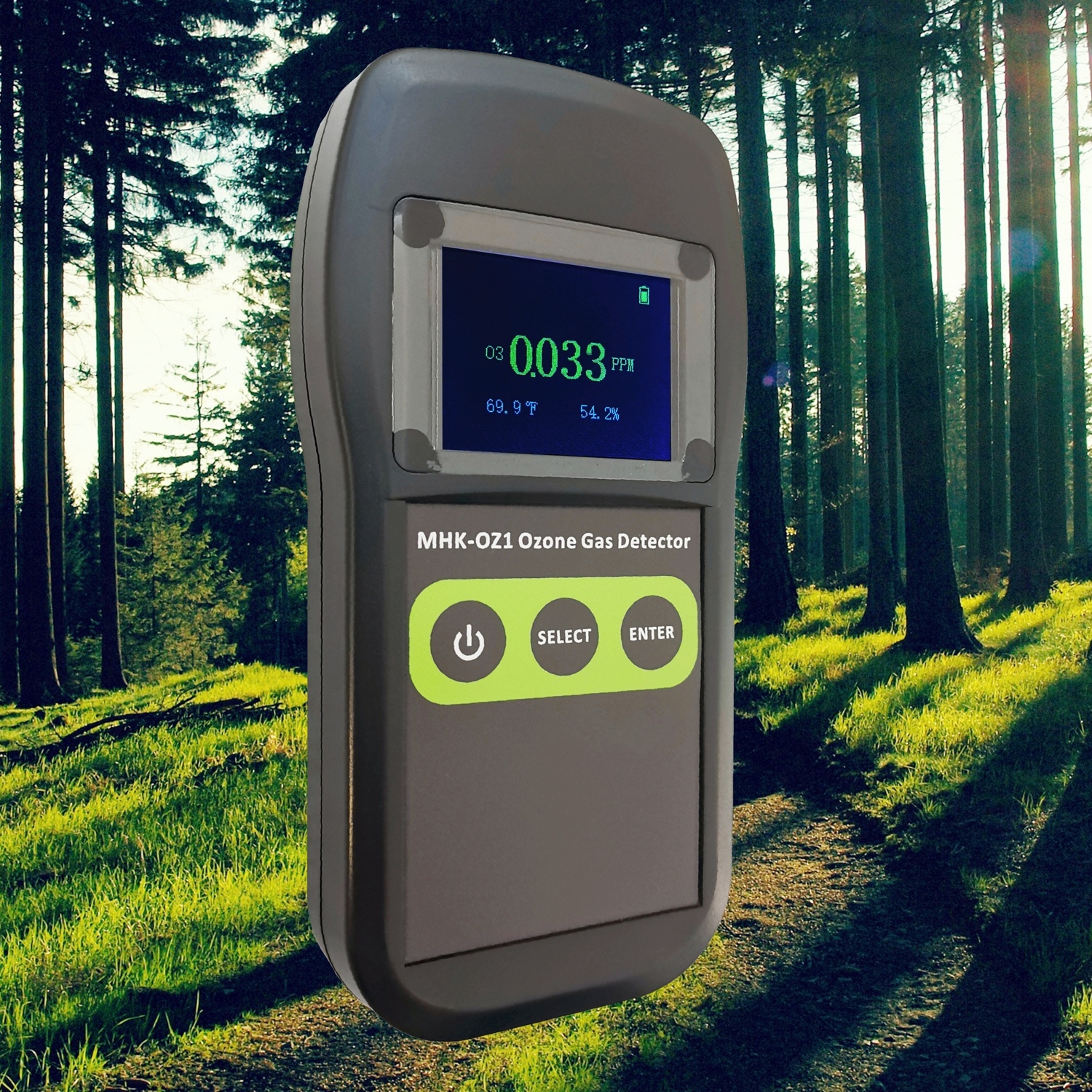

Ozone Gas Detector MHK-OZ1
MHK-OZ1 is an ultrasensitive Ozone gas detector with 0.001 ppm (=1 PPP) resolution for monitoring low level ozone (O3) in the air. It has been designed to notify of the presence of low level O3 gas. MHK-OZ1 has a wide range of applications in industrial, business, home or R&D and other fields.
Features
Portable O3 gas detector
Low level O3 gas detector range: 0 ~ 1.000 PPM. Resolution: 0.001 PPM or 1.0 PPP
Audible alarm
Two points of instantaneous alarm
Trend chart display showing the past readings for O3
With temperature and humidity measurement

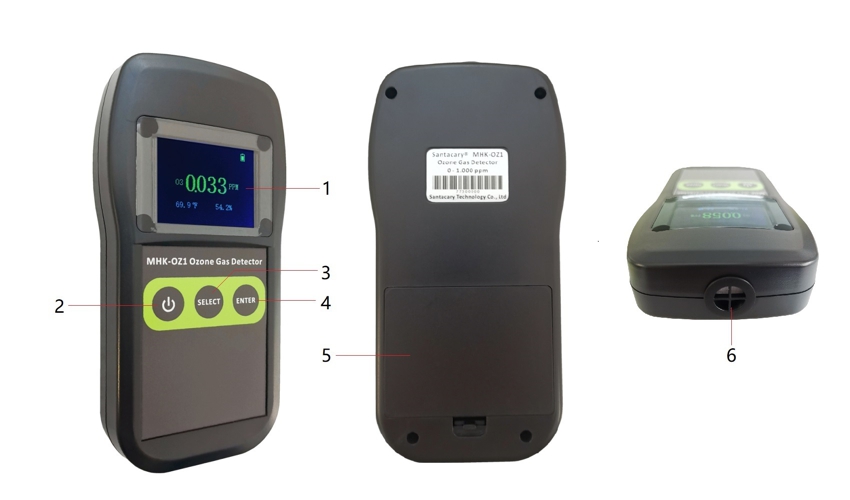

Device
1. TFT display
2. Power button
3. Select button
4. Enter button

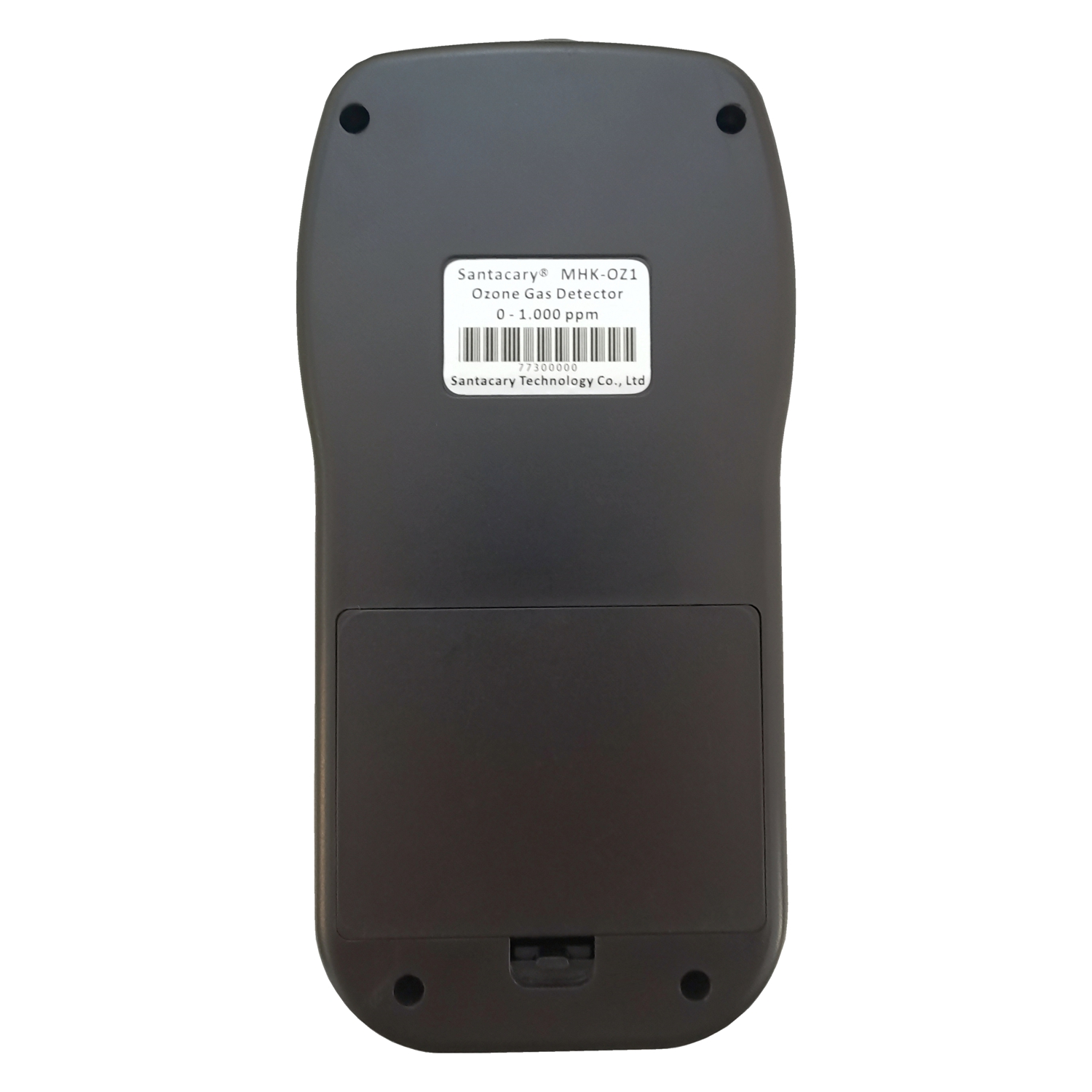

5. Battery compartment cover

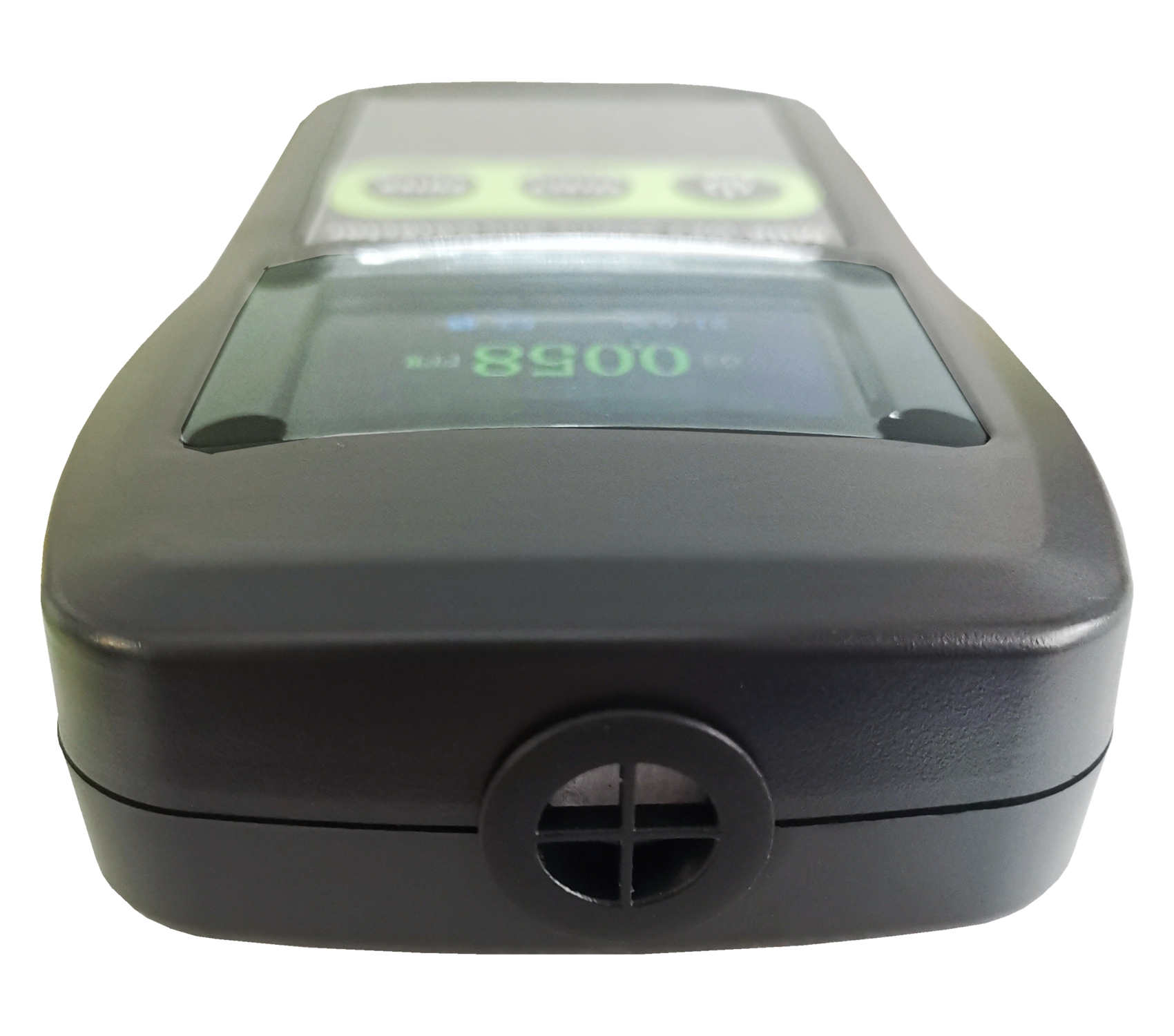

6. Air sampling port
Alarm
Low Alarm and High Alarm
MHK-OZ1 has two alarm set points: High Alarm (O3: 1.00 PPM) and Low Alarm (O3: 0.500 PPM). These set points are factory set and cannot be changed. MHK-OZ1 is equipped with audio alarms to alert you when the ambient gas concentration exceeds one of the two alarm set points. When O3 value exceeds the defined high alarm set point (1.000 PPM), the audio alarm will sound at 3 beeps/sec. When O3 value exceeds the defined low alarm set point (0.500 PPM) but less than the defined high alarm set point (1.000 PPM), the audio alarm will sound at 2 beeps/sec.
Factory Alarm Set points
Gas | Low | High |
O3 | 0.500 PPM | 1.000 PPM |
Specifications
O3 Sensor Specification:
Sensor | Electrochemical sensor |
Sample Method | Diffusion |
Measurement Range | 0~1.000 PPM |
Resolution | 0.001 PPM / 1.0 PPP |
Repeatability | <±5% of signal |
Accuracy | ±5%FS |
Warm-up time | <3 mins |
Response time | < 90 seconds (diffusion) |
Recovery time | < 90 seconds (diffusion) |
Service life | 2 years (in air) |
Temperature Specification
Temperature Range | -10.0~60.0°C (14~140°F) display |
Display Resolution | 0.1°C (0.1°F) |
Display Options | °C/°F switchable |
Accuracy | ±0.5°C (±0.9°F) |
Response Time | 5~30 seconds (device must equilibrate with environment) |
RH Specification
Measurement Range | 0.0~99.9%RH |
Display Resolution | 1%RH |
Accuracy | ±4.5%RH |
Response Time | <8 seconds for 63% of step change |
General Specification
Display | 2.2" TFT LCD |
Operating | -10°C to 50°C (14°F to 122°F), 15~90% RH non-condensing |
Storage | -10°C to 60°C (14°F to 140°F), <99% RH non-condensing |
Power Supply | Three AA Alkaline Batteries |
Dimensions | 74x148x26.5mm (2.91x5.83x1.04") |
Weight |
