UVA and UVB Light Meter MHK-U28
UVA and UVB Light Meter MHK-U28
UVA and UVB Light Meter MHK-U28
MHK-U28 is a precise meter that measures ultraviolet UVA and UVB radiation.
Features
Gallium Nitride Based Material Photovoltaic Mode
High-precision detection, rapid response and operation
Display UVI, and UV (UVA, UVB, UVA+UVB) radiation intensity simultaneously
Trend chart display showing the past readings for UVA+UVB intensity
Only two buttons and easy to operate
Three AA Alkaline Batteries
Application
For UVA:
Monitoring xeroderma pigmentosum UV exposure
Testing window film / tint transmission
Monitoring low level UV from household lamps
Testing ground level UV from stadium lighting
Testing ground level UV from stage, nightclub and theater lighting
Monitoring artwork UV exposure
Monitoring archaeological UV exposure
Measuring outdoor UV Including shady area UV
Monitoring UVA lamp intensity and aging
Monitoring UV LED (< 360nm)
Monitoring PUVA therapy lamp intensity and aging
Testing UVA in industrial glue curing, tungsten ore identification, fluorescence detection, biopolymerization, oil pollution detection, ore exploration, criminal detective, and textile industry.
For UVB:
Monitoring UVB phototherapy lamp intensity & aging
Testing general UV health lamp
Testing plant growth UV lights
Testing eyewear UVB blocking capabilities
Measuring outdoor UVB including shady area UVB
Testing window film / tin transmission
Testing acrylic shield transmission
Testing UVB for aging and spectral analysis

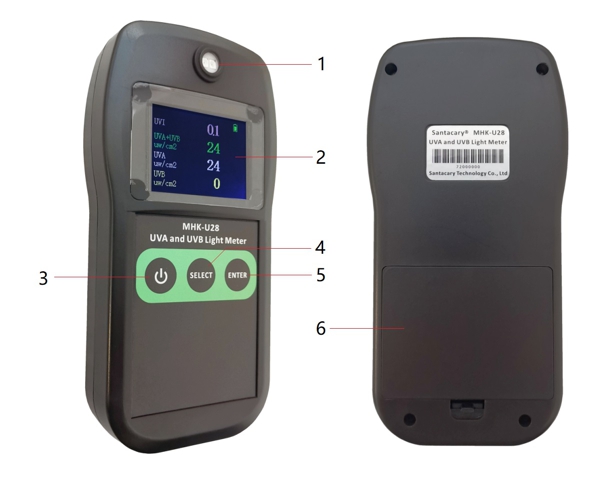

Device
1. UVA and UVB sensors
2. TFT display
3. Power button
4. Select button
5. Enter button
6. Battery compartment cover
Ultraviolet Index (UVI)
This meter displays the Ultraviolet Index (UVI) in Normal Display. Below table lists the risk of UVI.
Table UVI risk
UVI | 0-2.9 | 3.0-5.9 | 6.0~7.9 | 8.0~10.9 | 11+ |
Description | Low danger from the sun’s UV rays for the average person | Moderate risk of harm from unprotected sun exposure | High risk of harm from unprotected sun exposure | Very high risk of harm from unprotected sun exposure | Extreme risk of harm from unprotected sun exposure |

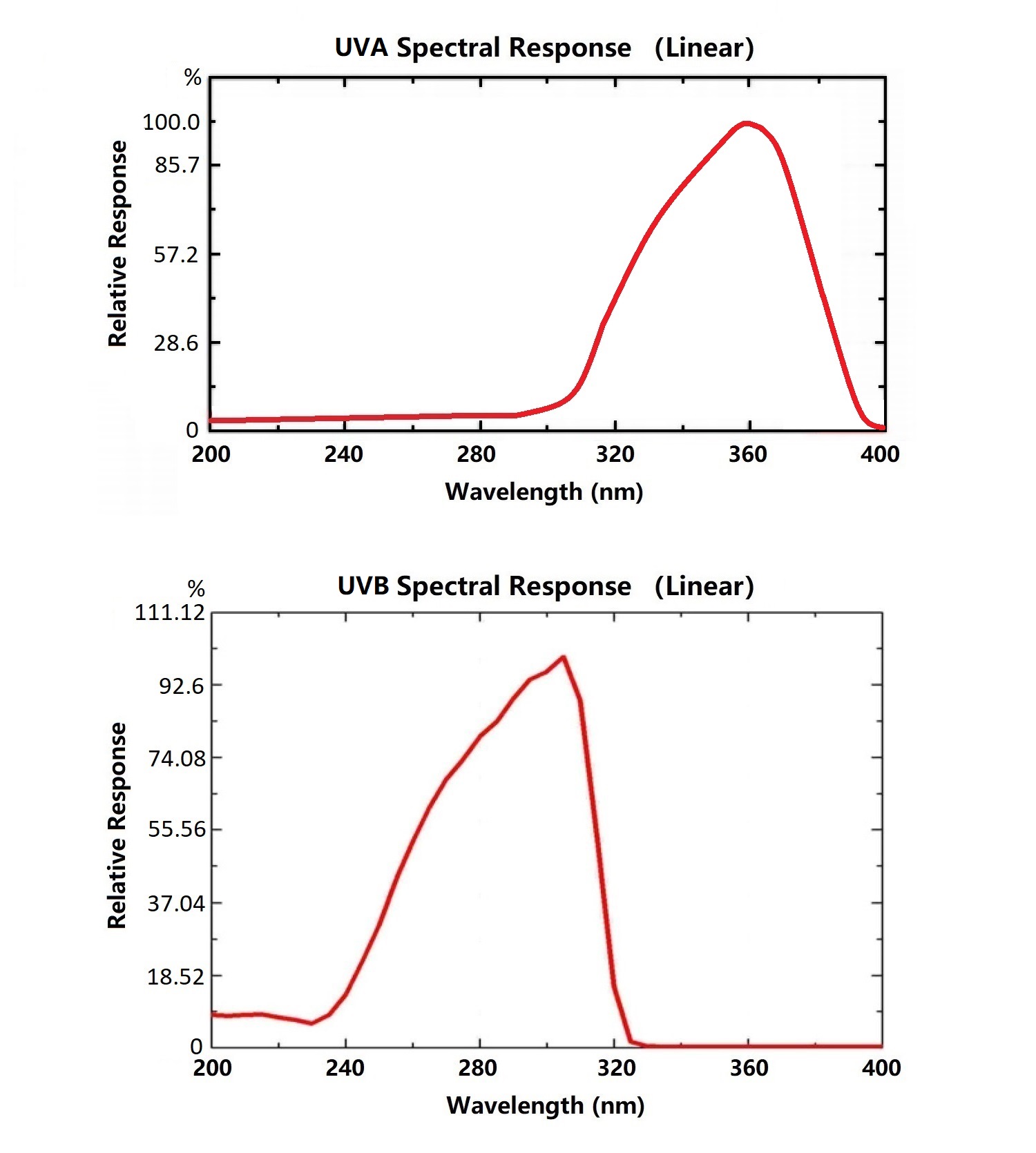

Spectral Response
Specifications
UVA+UVB Measurement Range | 0 to 50,000 µW/cm2 (50 mW/cm2) |
UVI Measurement Range | 0 to 130 |
Spectral Detection Range | 240 to 395 nm |
Peak point | 360nm |
Measurement accuracy | ±4% or ±1 digits |
Resolution | 1.0 µW/cm2 |
Temperature Range | -10 to 50°C (14 to 122°F) |
Humidity Range | 0 to 90%RH |
UVA Specification
UVA Measurement Range | 0 to 50,000 µW/cm2 (50 mW/cm2) |
Spectral Detection Range | 320 to 395 nm |
Peak point | 360 nm |
Measurement accuracy | ±4% or ±1 digits |
Resolution | 1.0 µW/cm2 |
Temperature Range | -10 to 50°C (14 to 122°F) |
Humidity Range | 0 to 90%RH |
UVB Specification
UVB Measurement Range | 0 to 25,000 µW/cm2 (0 to 25 mW/cm2) |
Spectral Detection Range | 240 to 320 nm |
Peak point of Spectrum | 305 nm |
Measurement accuracy | ±4% or ±1 digits |
Resolution | 1.0 µW/cm2 |
Temperature Range | -10 to 50°C (14 to 122°F) |
Humidity Range | 0 to 90%RH |
General
Display | 2.2" TFT LCD |
Operating | -10°C to 50°C (14°F to 122°F), 0~90% RH non-condensing |
Storage | -10°C to 60°C (14°F to 140°F), <99% RH non-condensing |
Power Supply | Three AA Alkaline Batteries |
Dimensions | 74x148x26.5mm (2.91x5.83x1.04") |
Weight | 120 grams (4.23 oz.) without batteries |
